Here is an example to program the PIC12F629 on JDM.

1. Connect the JDM with RS232 cable of a computer.
2. The green PWR LED should be light up.
3. Start the software, eg. ICProg1.05D and select 12F629 as device in software.
4. Make sure the JP1 is set on 2-3, and the JP2 is set on 2-3 too.
5. Place the 12F629 in the ZIF. Pin 1 toward the ZIF handle.
6. load the data into software
7. click on erase all button.
8. click on write all button.

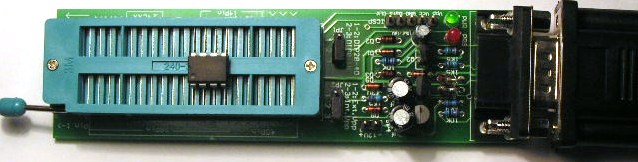

Hardware Connection On ZIF version:

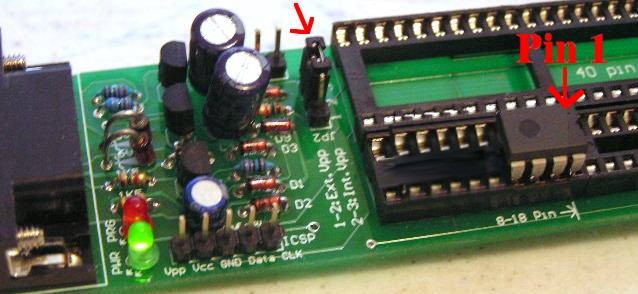

Hardware Connection On V2 version:

55.18 KB

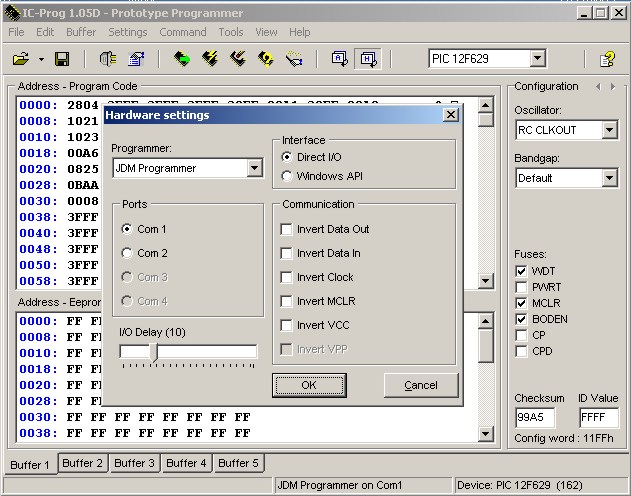

Software:
