teamzr1

27 Posts |
Posted - 12/24/2020 : 15:16:54
|

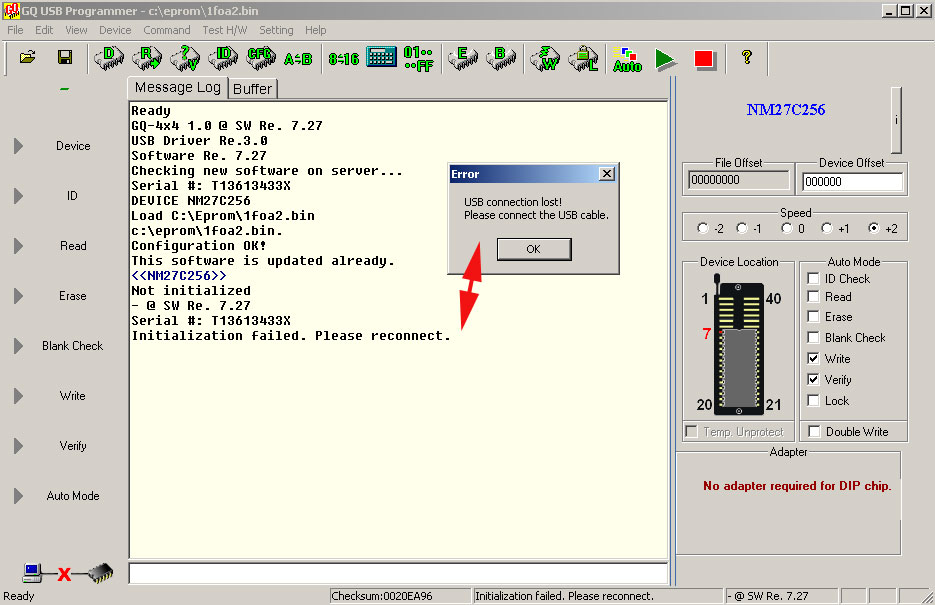

On a Random basis when in the process of inserting 27C series eproms into the 4x4 ZIP socket (not all pins inserted yet) the unit blows out the USB connection.
GQ software then says it does not see the GQ hardware unit When it does this the desktop P/C beeps and going into windows XP Pro device manager shows the GQ device driver still loaded
Only work around is to unload the GQ software and load again
I can take the same eprom like a NM27C512 and insert 6 times in a row but faults out the USB path once so happens on a random basis
Same random failure if using a 27C128, 256 or 512K 28 pin eprom Same problem if an external 9 volts is plugged in or not
I think this GQ 4x4 burned out the USB I/C chip on my HP desktop that has 8 USB ports that work either as USB V1.1 or V2.0
Once this USB issue happened all 8 ports no longer would work as V2 and only 1.1 version so GQ hardware and whatever their issue is took out the V2 USB :-(
I installed via the PCI-e slot a 3rd party 4 port USB board and then Gq hardware worked again. This 7 port USB board works from USB V3 to 1.1
This USB board by design protects the ports from backfeeding from devices plugged into a port
Version of GQ is 7.17, device driver says Cypress dated 6/24/2015
I contacted support twice to their email address and called them 2 times and after several days they still have not contacted me :-(
Clearly at time of inserting a eprom into ZIP socket (no external 9 volts connected ) makes no difference if I put the lower pin # in first or the last ones problem still happens.
That means at time GQ unit blows out USB that maybe 4-6 pins of the 28 are inserted into the ZIP socket (which is not latched down) GQ software pops up saying cannot find their device and clicking on hardware test fails.
So again unloading their software and loading it again USB port is not functional again and inserting the same eprom the problem does not happen
Question then is Why while partial installing eprom is GQ hardware blowing out USB ? Why using the same eprom most times does not fail and other times does ? Is there some software bug in either the GUI or the device driver ?
What is going on, is GQ feeding back voltage to P/C's USB hardware ? I notice when this happens the VCC light stays on even when I gt out of the GQ software and have to disconnect the uSB cable and connect again to gt LED out
What is a fix and why does Mcumall either by calling them or email not replying to customers who are having serious GQ problems ?

Thanks
|
JR Team ZR-1 |
Edited by - teamzr1 on 12/24/2020 16:36:32
|
|
Reply #1
anniel

2529 Posts |
Posted - 12/25/2020 : 06:07:30
|
quote: Originally posted by teamzr1
On a Random basis when in the process of inserting 27C series eproms into the 4x4 ZIP socket (not all pins inserted yet) the unit blows out the USB connection.
GQ software then says it does not see the GQ hardware unit When it does this the desktop P/C beeps and going into windows XP Pro device manager shows the GQ device driver still loaded
Only work around is to unload the GQ software and load again
I can take the same eprom like a NM27C512 and insert 6 times in a row but faults out the USB path once so happens on a random basis
Same random failure if using a 27C128, 256 or 512K 28 pin eprom Same problem if an external 9 volts is plugged in or not
I think this GQ 4x4 burned out the USB I/C chip on my HP desktop that has 8 USB ports that work either as USB V1.1 or V2.0
Once this USB issue happened all 8 ports no longer would work as V2 and only 1.1 version so GQ hardware and whatever their issue is took out the V2 USB :-(
I installed via the PCI-e slot a 3rd party 4 port USB board and then Gq hardware worked again. This 7 port USB board works from USB V3 to 1.1
This USB board by design protects the ports from backfeeding from devices plugged into a port
Version of GQ is 7.17, device driver says Cypress dated 6/24/2015
I contacted support twice to their email address and called them 2 times and after several days they still have not contacted me :-(
Clearly at time of inserting a eprom into ZIP socket (no external 9 volts connected ) makes no difference if I put the lower pin # in first or the last ones problem still happens.
That means at time GQ unit blows out USB that maybe 4-6 pins of the 28 are inserted into the ZIP socket (which is not latched down) GQ software pops up saying cannot find their device and clicking on hardware test fails.
So again unloading their software and loading it again USB port is not functional again and inserting the same eprom the problem does not happen
Question then is Why while partial installing eprom is GQ hardware blowing out USB ? Why using the same eprom most times does not fail and other times does ? Is there some software bug in either the GUI or the device driver ?
What is going on, is GQ feeding back voltage to P/C's USB hardware ? I notice when this happens the VCC light stays on even when I gt out of the GQ software and have to disconnect the uSB cable and connect again to gt LED out
What is a fix and why does Mcumall either by calling them or email not replying to customers who are having serious GQ problems ?

Thanks
Are you working in a static free environment? |
 |
|
Reply #2
teamzr1

27 Posts |
Posted - 12/25/2020 : 09:14:04
|
The top of my work bench has a anti static pad and I see no reason a eprom just having a few pins in the zip socket during insert would the GQ unit blow out the USB connection and not recover from it or prevent any backfeed through USB port. I have used multi USB cables ( less then 3 feet long) and same results, some are version 3 USB cables that are better shielded and twists of wire to prevent EMI, RFI, etc Same results using USB ports on P/C of Version 2 and 3 Same results if using or not a external 9 volts source.
This never happened using another brand of eprom burner and I have been doing this for over 25 years in custom tuning engine calibrations for vehicles
It seems like the ZIP socket even when unlatched that the contacts are showing and when in process of inserting a eprom legs touch those ZIP contacts and makes no difference if I put the top legs of eprom or the rear pins first and still on random basis this happens
Does this tool have some error report log to see what is going on ?
Thanks
|
JR Team ZR-1 |
 |
|
Reply #3
anniel

2529 Posts |
Posted - 12/25/2020 : 10:07:55
|
quote: Originally posted by teamzr1
The top of my work bench has a anti static pad and I see no reason a eprom just having a few pins in the zip socket during insert would the GQ unit blow out the USB connection and not recover from it or prevent any backfeed through USB port. I have used multi USB cables ( less then 3 feet long) and same results, some are version 3 USB cables that are better shielded and twists of wire to prevent EMI, RFI, etc Same results using USB ports on P/C of Version 2 and 3 Same results if using or not a external 9 volts source.
This never happened using another brand of eprom burner and I have been doing this for over 25 years in custom tuning engine calibrations for vehicles
It seems like the ZIP socket even when unlatched that the contacts are showing and when in process of inserting a eprom legs touch those ZIP contacts and makes no difference if I put the top legs of eprom or the rear pins first and still on random basis this happens
Does this tool have some error report log to see what is going on ?
Thanks
Post a picture of the showing ZIF contacts. |
 |
|
Reply #4
teamzr1

27 Posts |
Posted - 12/25/2020 : 12:49:13
|

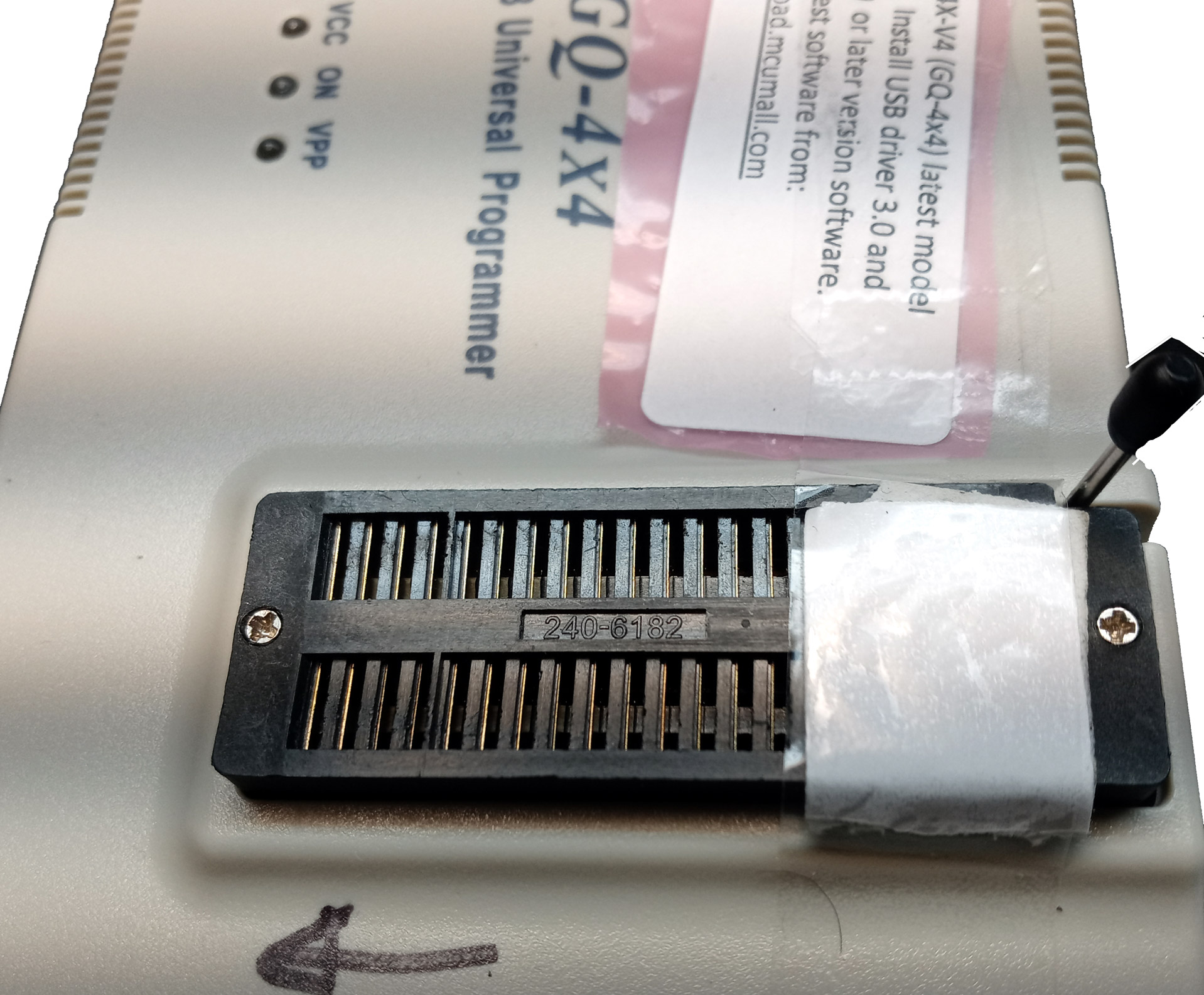

Here is photo and as can be seen the metal pins of ZIP socket showing Being I only work with 28 pin eproms I taped off all other pins so when inserting a eprom it's pins cannot enter those slots
I have tried inserting so pins of eprom are either first going into the rear slots or the top pins and in either case this loss of USB on a random basis
As mentioned I have taken just 1 eprom and several times in a row go to insert it into ZIP socket and on random basis USB on unit fails but then testing unit (after loading software again) and eprom both are OK
I only guessing that some logic or voltage on exposed slots and eprom going in slightly cocked causing some problem the GQ unit is reacting and backfeeding to units USB logic ?
GQ design should have something in to prevent this or is something wrong with just this unit. Hard to tell since Mcumall never responds to my phone calls to support or emails :(

|
JR Team ZR-1 |
 |
|
Reply #5
anniel

2529 Posts |
Posted - 12/25/2020 : 13:22:11
|
quote: Originally posted by teamzr1
Here is photo and as can be seen the metal pins of ZIP socket showing Being I only work with 28 pin eproms I taped off all other pins so when inserting a eprom it's pins cannot enter those slots
I have tried inserting so pins of eprom are either first going into the rear slots or the top pins and in either case this loss of USB on a random basis
As mentioned I have taken just 1 eprom and several times in a row go to insert it into ZIP socket and on random basis USB on unit fails but then testing unit (after loading software again) and eprom both are OK
I only guessing that some logic or voltage on exposed slots and eprom going in slightly cocked causing some problem the GQ unit is reacting and backfeeding to units USB logic ?
GQ design should have something in to prevent this or is something wrong with just this unit. Hard to tell since Mcumall never responds to my phone calls to support or emails :(

With the lever UP the slots should have a contact on each sides, not both on the same side.
Here is what you need: https://www.mcumall.com/store/index.php?route=product/product&path=62&product_id=199 |
Edited by - anniel on 12/25/2020 13:37:34 |
 |
|
Reply #6
teamzr1

27 Posts |
Posted - 12/25/2020 : 23:09:38
|
Will be this be better then the one that is in it ? Does this work for the GQ 4x4 model ?
Simple unplug the zip from the board ?
I ordered that ZIP socket to see if it solves my problem Crazy pricing as the socket was $10 but cheapest shipping was another $16 !
Thanks for all the help |
JR Team ZR-1 |
Edited by - teamzr1 on 12/26/2020 17:13:52 |
 |
|
Reply #7
anniel

2529 Posts |
|
Reply #8
anniel

2529 Posts |
Posted - 12/27/2020 : 05:36:01
|
quote: Originally posted by teamzr1
Will be this be better then the one that is in it ? Does this work for the GQ 4x4 model ?
Simple unplug the zip from the board ?
I ordered that ZIP socket to see if it solves my problem Crazy pricing as the socket was $10 but cheapest shipping was another $16 !
Thanks for all the help
Keep us posted. |
 |
|
Reply #9
ZLM

2939 Posts |
Posted - 12/29/2020 : 14:20:20
|
@teamzr1, many of those kind of problems are related to the poor contacting. Not only chip pin contacting, but also the USB connection.
Check the USB cable connection and contacting. Try with different USB port and good USB cable. If the USB cable is not capable to provide enough current to the programmer, then the initialization may fail. |
 |
|
Reply #10
teamzr1

27 Posts |
Posted - 12/29/2020 : 14:58:49
|
ZLM as posted this happens in my testing with 3 new USB cables that are less then 3 feet long and one is even the better Version 3 USB cable other 2 are USB V 2 cables with ferrets on to reduce EMI or RFI
It also happens in using all eight V 2 USB ports of the HP DC5100 MT which after enough times of the GQ 4x4 unit popping off the USB and tripping the error I showed in screenshots that unit backfeed downstream voltage to the USB I/C in the HP and now all 8 USB ports only work as V 1.1 USB
I went so far then in HP BIOS to turn OFF the USB hardware, paid for a 7 port Version 3 product that connects via PCI-e and voltage directly from the P/C power supply so all 7 of those USB ports are getting plenty of voltage and each USB port handles up to 1 amp loads.
Still the GQ 4x4 on random basis using multi brands of 27C 28 PIN DIC eproms the problem still occurs.
Fact this happen when Eprom is in the process of being inserted into the ZIP socket then there should be no voltage or current draw as not all pins have been inserted at time of failure by GQ 4x4
To me the GQ 4x4 is not designed (or failure with this unit) to prevent backfeeding from it to the USB P/C port it is connected to and instead of dragging this on now for about 1 month is to honor the warranty of unit about 1 year old and send me a newest one that has been tested before sending to me and assuring it has newest software and firmware
Also since this unit is popping up a error screen saying USB is lost shows something during Eprom insertion is failing on random basis if it is the ZIP socket or logic to it's pins
BTW this happens in using brand new Eproms so its pins are clean and straight and also happens on used Eproms that either were erased or sill has code in them
Also found I had to change properties of the GQ software to work as XP compatible as not doing so the software crashes also |
JR Team ZR-1 |
Edited by - teamzr1 on 12/29/2020 18:17:28 |
 |
|
Reply #11
teamzr1

27 Posts |
Posted - 12/29/2020 : 18:15:01
|
Well that is it Tsted on 2 P/C with windows XP pro, same failures
Installed on another P/C that has windows 8.1 and same failures

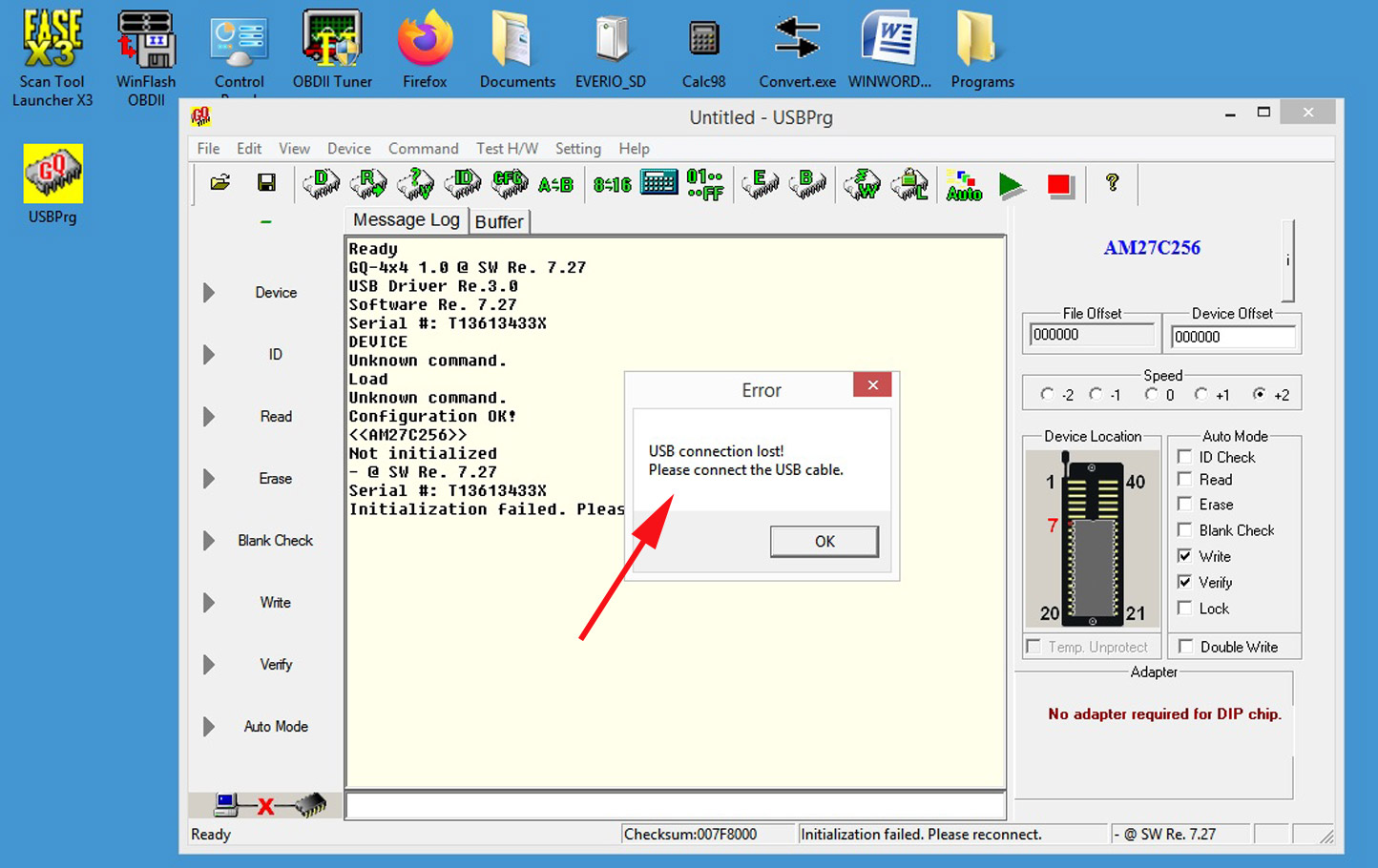

First attempt to insert a AMD 27C256 28 PIN E-prom and instantly GQ 4x4 crashed with the trapped information
Windows events for 8.1 reported more info
Reported :
1001400x8000000000000015395 ApplicationAcerLaptop0PCA2Not available0USBPrg.exe1.0.0.1USBPrg MFC ApplicationUSBPrg Application #51459;®1001 C:\Users\teamzr1\AppData\Local\Temp\PCW5E24.tmp C:\Users\teamzr1\AppData\Local\Temp\ACG5ED1.tmp C:\ProgramData\Microsoft\Windows\WER\ReportQueue\NonCritical_USBPrg.exe_915bf58fa3075f667939c2c864b99ece3ee4e9b_00000000_cab_59785eff052fe7fff-4a3d-11eb-828c-d053499d59f7100 ------------------------------------------------------------ <?xml version="1.0" encoding="UTF-16"?> <CompatWizardResults ApplicationName="C:\Program Files (x86)\GQ USB Programmer\USBPrg.exe" ApplicationPath="C:\Program Files (x86)\GQ USB Programmer\USBPrg.exe" MediaType="Fixed" CompatibilityResult="Success"> <LAYER NAME="WIN8RTM" /> </CompatWizardResults>
Serious problems with this GQ 4x4, if it is the software (V7.27) the Cypress driver or the hardware unit itself
Mcumall design and support need to get on this ASAP


|
JR Team ZR-1 |
 |
|
Reply #12
teamzr1

27 Posts |
Posted - 12/29/2020 : 19:49:13
|

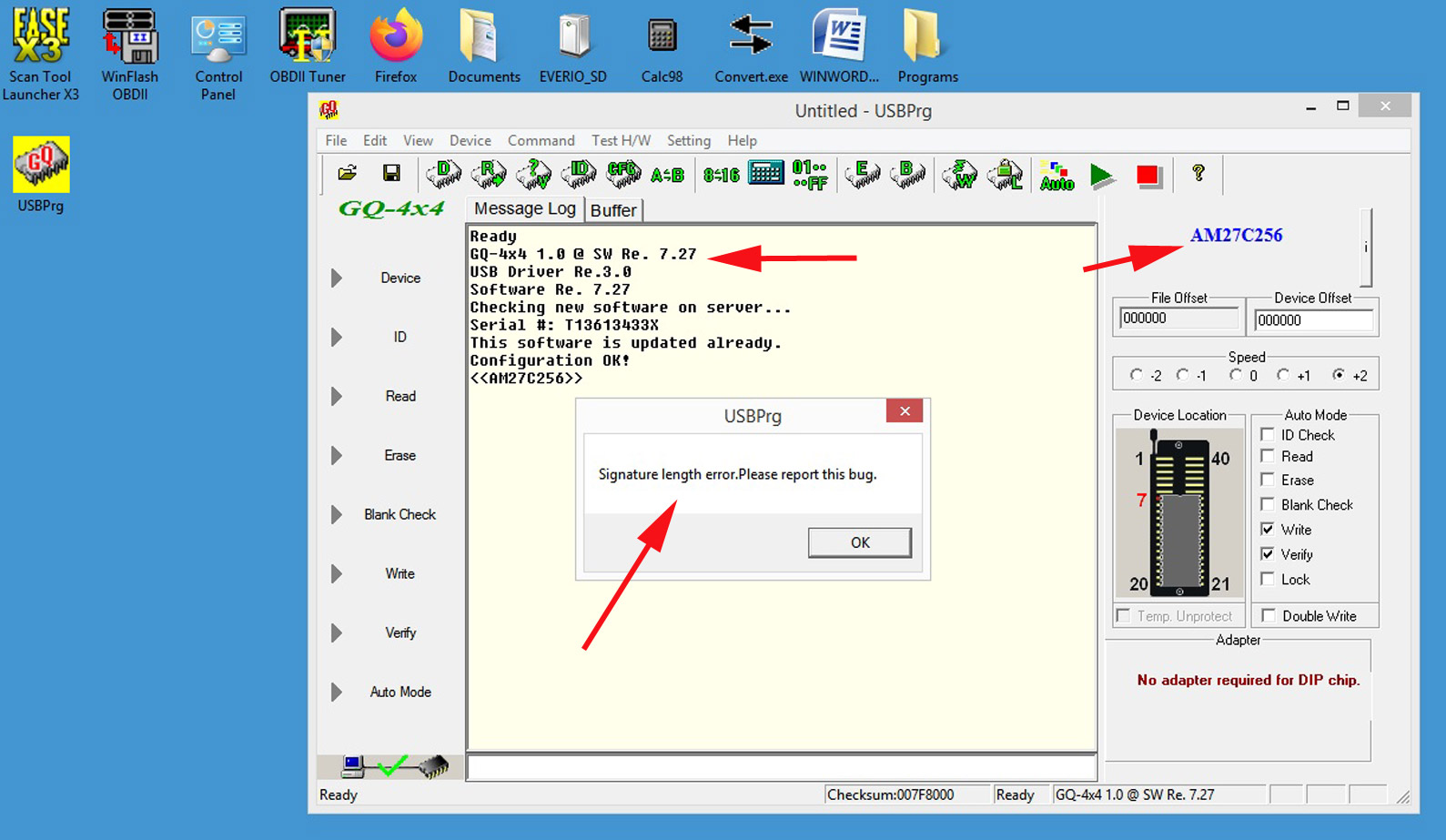

Now add MSwindows 7 Pro also crashes the USB path in inserting any Eprom and again the windows events log catch that the USprog is the cause
Log Name: Application Source: Windows Error Reporting Date: 12/29/2020 6:37:37 PM Event ID: 1001 Task Category: None Level: Information Keywords: Classic User: N/A Computer: IBMT50 Description: Fault bucket , type 0 Event Name: PCA2 Response: Not available Cab Id: 0
Problem signature: P1: USBPrg.exe P2: 1.0.0.1 P3: USBPrg MFC Application P4: USBPrg Application P5: #512;#448; P6: 200 P7: -1 P8: P9: P10:
Attached files: C:\Users\teamzr1\AppData\Local\Temp\{74aaa941-53d0-406c-bc4c-6bfdd206f6ee}\appcompat.txt C:\Users\teamzr1\AppData\Local\Temp\TabF2D6.tmp
These files may be available here:
Analysis symbol: Rechecking for solution: 0 Report Id: fa08f5da-4a47-11eb-99aa-c417fef66e98 Report Status: 0 Event Xml: <Event xmlns="h**p://schemas.microsoft.com/win/2004/08/events/event"> <System> <Provider Name="Windows Error Reporting" /> <EventID Qualifiers="0">1001</EventID> <Level>4</Level> <Task>0</Task> <Keywords>0x80000000000000</Keywords> <TimeCreated SystemTime="2020-12-30T02:37:37.000000000Z" /> <EventRecordID>4506</EventRecordID> <Channel>Application</Channel> <Computer>IBMT50</Computer> <Security /> </System> <EventData> <Data> </Data> <Data>0</Data> <Data>PCA2</Data> <Data>Not available</Data> <Data>0</Data> <Data>USBPrg.exe</Data> <Data>1.0.0.1</Data> <Data>USBPrg MFC Application</Data> <Data>USBPrg Application</Data> <Data>#512;#448;</Data> <Data>200</Data> <Data>-1</Data> <Data> </Data> <Data> </Data> <Data> </Data> <Data> C:\Users\teamzr1\AppData\Local\Temp\{74aaa941-53d0-406c-bc4c-6bfdd206f6ee}\appcompat.txt C:\Users\teamzr1\AppData\Local\Temp\TabF2D6.tmp</Data> <Data> </Data> <Data> </Data> <Data>0</Data> <Data>fa08f5da-4a47-11eb-99aa-c417fef66e98</Data> <Data>0</Data> </EventData> </Event> - <Event xmlns="h**p://schemas.microsoft.com/win/2004/08/events/event"> - <System> <Provider Name="Windows Error Reporting" /> <EventID Qualifiers="0">1001</EventID> <Level>4</Level> <Task>0</Task> <Keywords>0x80000000000000</Keywords> <TimeCreated SystemTime="2020-12-30T02:37:37.000000000Z" /> <EventRecordID>4506</EventRecordID> <Channel>Application</Channel> <Computer>IBMT50</Computer> <Security /> </System> - <EventData> <Data /> <Data>0</Data> <Data>PCA2</Data> <Data>Not available</Data> <Data>0</Data> <Data>USBPrg.exe</Data> <Data>1.0.0.1</Data> <Data>USBPrg MFC Application</Data> <Data>USBPrg Application</Data> <Data>#512;#448;</Data> <Data>200</Data> <Data>-1</Data> <Data /> <Data /> <Data /> <Data>C:\Users\teamzr1\AppData\Local\Temp\{74aaa941-53d0-406c-bc4c-6bfdd206f6ee}\appcompat.txt C:\Users\teamzr1\AppData\Local\Temp\TabF2D6.tmp</Data> <Data /> <Data /> <Data>0</Data> <Data>fa08f5da-4a47-11eb-99aa-c417fef66e98</Data> <Data>0</Data> </EventData> </Event>
|
JR Team ZR-1 |
 |
|
Reply #13
ZLM

2939 Posts |
Posted - 12/29/2020 : 22:16:04
|
The symptoms look like a communication problem between the programmer and the software. If you can confirm the USB port, USB cable, and connection are good, then the problem may come from the programmer s USB port or itself. In this case, you need to send the programmer back for the service. Write an email to support@mcumall.com with your order number, so that they can check the warranty and send you the RMA code.
|
 |
|
Reply #14
anniel

2529 Posts |
Posted - 12/30/2020 : 05:51:23
|
quote: Originally posted by ZLM
The symptoms look like a communication problem between the programmer and the software. If you can confirm the USB port, USB cable, and connection are good, then the problem may come from the programmer s USB port or itself. In this case, you need to send the programmer back for the service. Write an email to support@mcumall.com with your order number, so that they can check the warranty and send you the RMA code.
ZLM, his ZIF is damaged. Probably shorting pins inside the ZIF. |
 |
|
Reply #15
teamzr1

27 Posts |
Posted - 12/31/2020 : 07:56:24
|
In more testing on this I doubt it is the ZIP socket but will prove that when the new ZIP socket I ordered comes next week
I suspect this random failure of blowing out the USB port is some hardware issue in the GQ 4x4 electronics and Mcumall ignores my emails to just replace the unit that is only about 1 year old. :-( |
JR Team ZR-1 |
 |
|
Reply #16
anniel

2529 Posts |
Posted - 12/31/2020 : 11:27:09
|
quote: Originally posted by teamzr1
In more testing on this I doubt it is the ZIP socket but will prove that when the new ZIP socket I ordered comes next week
I suspect this random failure of blowing out the USB port is some hardware issue in the GQ 4x4 electronics and Mcumall ignores my emails to just replace the unit that is only about 1 year old. :-(
How did you manage to break the ZIF? |
 |
|
Reply #17
teamzr1

27 Posts |
Posted - 12/31/2020 : 19:32:41
|

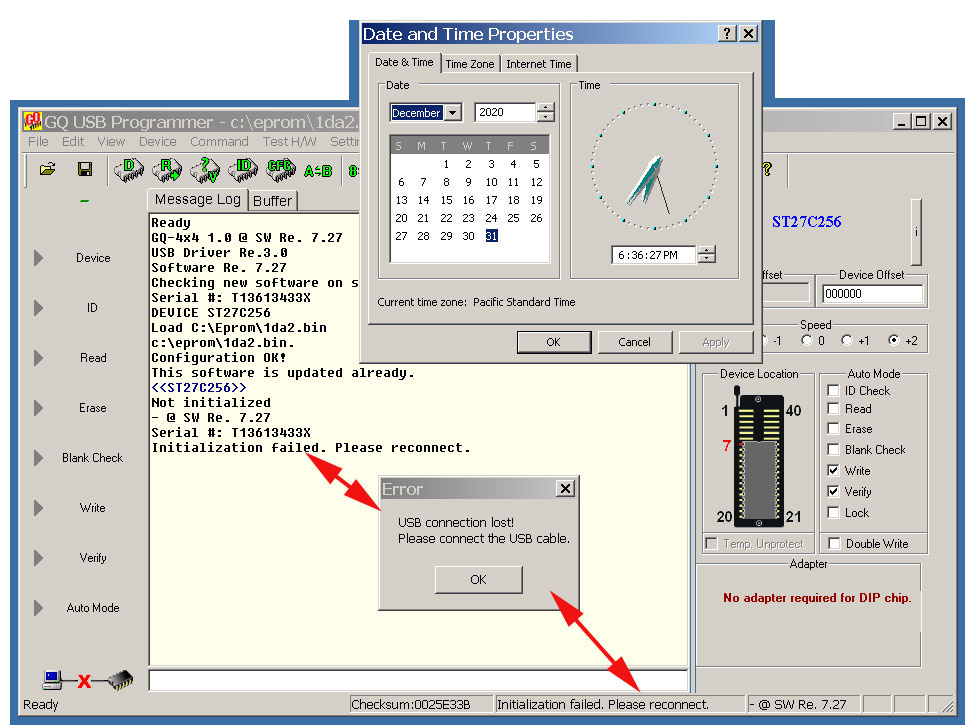

ZIF socket I bought and paid for shipping showed up this 12/31/20 I installed it in replace of the original one
Within third time of inserting a ST 27C256 K 28 pin DIP, with about 4 of the front pins inserting with latch OPEN the GQ 4xt crashed, P/C beeps and USB connection is gone as in all other failures
Poor design and quality with worse Mcumall ignoring they send me a replacement or even replying to my emails or phone calls. Not sure why they have a support forum when they ignore their own customer base.
 |
JR Team ZR-1 |
Edited by - teamzr1 on 12/31/2020 19:33:58 |
 |
|
Reply #18
anniel

2529 Posts |
Posted - 01/01/2021 : 07:50:27
|
quote: Originally posted by teamzr1
ZIF socket I bought and paid for shipping showed up this 12/31/20 I installed it in replace of the original one
Within third time of inserting a ST 27C256 K 28 pin DIP, with about 4 of the front pins inserting with latch OPEN the GQ 4xt crashed, P/C beeps and USB connection is gone as in all other failures
Poor design and quality with worse Mcumall ignoring they send me a replacement or even replying to my emails or phone calls. Not sure why they have a support forum when they ignore their own customer base.

If you are not satisfied with the design and quality of the GQ-4X get a Dataman or a Xeltek. |
 |
|
Reply #19
teamzr1

27 Posts |
Posted - 01/08/2021 : 19:23:09
|
Not the point is it ? I paid $110 USD for this and right from the get go it had problems So am I just to eat that money and then spend more to buy another brand ? They were supposted to send me a return and never did, nor send me a new unit even though mine was less then a year old thus not honoring their own warranty
Does not answer why Mcumall management or support on several emails I sent them replied once and asked again what the problem is and then doing so they never replied back
Same as the long distance phone calls to them who are in Canada as not one time someone answer the phone and they are in the same timezone as I am Except 1 time a womand there who clearly think was from China that I could barely understand what she was saying did say she would solve it all and then never heard from her again
I paid for a new ZIF socket on a chance it was the problem only to get the new one and the problems still exist.
IN all my testing, labor and reports I posted here to help them solve the problems they just ignored it and clear as anyone reading my 2 different problems as Mcumall support never bother to even reply to them
What it comes down to is a GQ-4x4 design or quality issue that is highly prone to static. Even touching the plastic case with one finger can trigger a USB failure on unit One test I did when changing the ZIF socket is lightly touch the small crystal and instantly unit tripped a USB failure.
By shielding the units case and using a direct ground reduced unit USB failing :(
|
JR Team ZR-1 |
 |
|
Reply #20
anniel

2529 Posts |
Posted - 01/09/2021 : 05:35:33
|
quote: Originally posted by teamzr1
Not the point is it ? I paid $110 USD for this and right from the get go it had problems So am I just to eat that money and then spend more to buy another brand ? They were supposted to send me a return and never did, nor send me a new unit even though mine was less then a year old thus not honoring their own warranty
Does not answer why Mcumall management or support on several emails I sent them replied once and asked again what the problem is and then doing so they never replied back
Same as the long distance phone calls to them who are in Canada as not one time someone answer the phone and they are in the same timezone as I am Except 1 time a womand there who clearly think was from China that I could barely understand what she was saying did say she would solve it all and then never heard from her again
I paid for a new ZIF socket on a chance it was the problem only to get the new one and the problems still exist.
IN all my testing, labor and reports I posted here to help them solve the problems they just ignored it and clear as anyone reading my 2 different problems as Mcumall support never bother to even reply to them
What it comes down to is a GQ-4x4 design or quality issue that is highly prone to static. Even touching the plastic case with one finger can trigger a USB failure on unit One test I did when changing the ZIF socket is lightly touch the small crystal and instantly unit tripped a USB failure.
By shielding the units case and using a direct ground reduced unit USB failing :(
It is true that when manipulating most semiconductor you must do it in a static controlled area. If you have a static problem you should first get rid of it and your GQ-4X will then work flawlessly. |
 |
|
|
