 Using The Enhanced/Dual power Willem Programmer
 27C256 jumper setting on dual power
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

ZLM

2926 Posts

Posted - 02/10/2006 :  22:29:26  Show Profile  Reply with Quote

Edited by - ZLM on 02/10/2006 22:29:49
Reply #1

Batch

3 Posts

Posted - 05/31/2006 :  17:33:09  Show Profile  Reply with Quote
ok the dip settings in the instructions were different than what you have showing. also, on the yellow jumper settings in the diagram, my board has one more jumper connecting the bottom 2 that are vertical of each other. Do I need to set them up like this? All the settings in your diagram is how the board should be correct? Thanks
Go to Top of Page
Reply #2

ZLM

2926 Posts

Posted - 06/01/2006 :  16:06:54  Show Profile  Reply with Quote

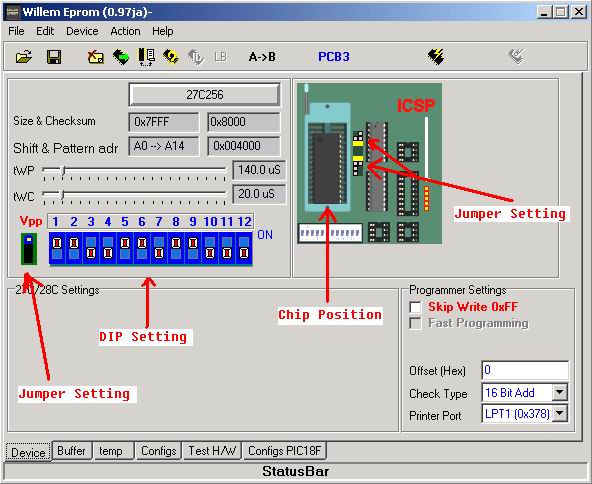

All the jumper settings and DIP settings must be set same as above.
Your vertical jumper is for AT29C256. You have to remove it.

Edited by - ZLM on 06/01/2006 16:08:01
Go to Top of Page
Reply #3

tizo

Hungary
5 Posts

Posted - 09/05/2006 :  01:24:03  Show Profile  Reply with Quote

Hi!

excuse but i m very newbie :) i m not realy sure.

please correct that:





thank you



Why drink and drive, when you can smoke and fly :) ?
Go to Top of Page
Reply #4

ZLM

2926 Posts

Posted - 09/05/2006 :  10:40:44  Show Profile  Reply with Quote
The Enhanced willem does not have the jumper 2 and 3 in the software. Instead it uses the LEDs to indicate the current jumper setting.

#3 in your borad picture(J3) is the A18/Vpp jumper. It located just left side of DIP in the software picture.
Go to Top of Page
Reply #5

tizo

Hungary
5 Posts

Posted - 09/05/2006 :  12:24:49  Show Profile  Reply with Quote
thank you!

now i look better!

Just /maybe because my english is very bad :)/ i look two jumper on the picture /program/ 2 yellow and evry two in the left side :( wich is the j3?

thx

Why drink and drive, when you can smoke and fly :) ?
Go to Top of Page
Reply #6

ZLM

2926 Posts

Posted - 09/06/2006 :  11:30:02  Show Profile  Reply with Quote
J3 is the #3 on your hardware board picture.
Go to Top of Page
