 Cannot program with JDM PIC programmer
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

BlueSky

14 Posts

Posted - 11/17/2006 :  12:45:13  Show Profile  Reply with Quote
ICPprog105d and Winpic800 are giving errors.
Can anyone help me?
Reply #1

ZLM

2923 Posts

Posted - 11/17/2006 :  12:46:56  Show Profile  Reply with Quote
please check followings:

1. Can you confirm your have a good working RS232 port? The programmer does not work with USB-Serial adapter.
2. Did you put your chip in ZIF socket at the correct position?
See this link for chip positions: http://www.mcumall.com/forum/topic.asp?TOPIC_ID=377
3. Can you confirm the jumper are on the correct position?
4. Does the Green and Red LED on when doing read/write?
5. What is the voltage on the ICSP header Vpp pin and Vcc pin during the read and write? (relatively to GND pin)
6. What is the exact error message?

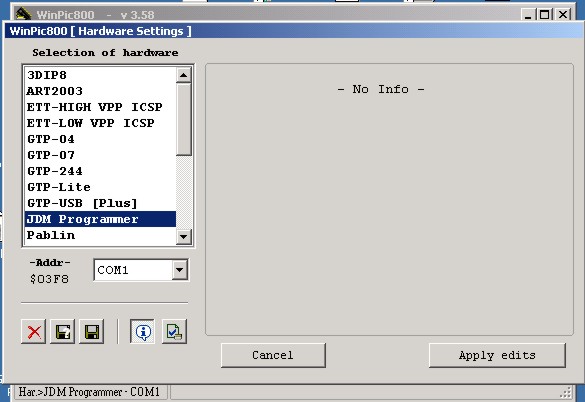

Software Setting:

Edited by - ZLM on 11/20/2006 19:05:30
Go to Top of Page
Reply #2

BlueSky

14 Posts

Posted - 11/17/2006 :  12:59:44  Show Profile  Reply with Quote
I got 16F84 and 16F628A working on this programmer, but the 12F629 does not work.
After I checked the board and searched the internet on the JDM infomation, I found the 12F629 need extra time for VDD after VPP on.

I did a simple modification on the circuit and it is working on 12F629 with no problems what so ever with all JDM software programs I have found.

Edited by - BlueSky on 11/17/2006 13:00:29
Go to Top of Page
Reply #3

karlr

USA
1 Posts

Posted - 05/29/2007 :  20:23:36  Show Profile  Reply with Quote
what changes did you make?
Go to Top of Page
Reply #4

BlueSky

14 Posts

Posted - 05/30/2007 :  07:49:42  Show Profile  Reply with Quote
I just did the changes same as the topic:
http://www.mcumall.com/forum/topic.asp?TOPIC_ID=557

Anyway I found the IC-Prog1.05D works better. The PICPgm V0.9.9.5 works too, but need to do a empty read after detected the 12F629 chip. After empty read, then put the 12F629 in the ZIF do rest of operations.

Edited by - BlueSky on 05/30/2007 07:50:06
Go to Top of Page
Reply #5

Grey

Canada
1 Posts

Posted - 07/03/2007 :  12:01:57  Show Profile  Reply with Quote
I Appear to be having the same problem, are there any workarounds aside from modifying the JDM Programmer? or will modifying it in this way cause any problems with other PIC's?
Go to Top of Page
Reply #6

ZLM

2923 Posts

Posted - 07/03/2007 :  21:57:21  Show Profile  Reply with Quote
The modification is not mandatory to all PIC chip as I know.

The 12F629 will work well if you use IC-Prog1.05D. So, most likely the problem is from the software. The IC-Prog1.05D has the I/O delay option to user. The adjustable I/O delay is very use full on different computer speed.
