krozzen

Philippines
11 Posts

Posted - 04/19/2012 :  02:15:08  Show Profile  Reply with Quote
i have gq-4x and ver 2 tsop adapter. gq-4x cant read the device and it promt me to this site http://www.mcumall.com/support/scriptDP-003_MOD_01.jpg
to modify my tsop. I suppose it has no support for this chips yet, pls i need advice regarding this matter. Do i need to modify or i have to wait for the new update for the software.
Reply #1

ZLM

2923 Posts

Posted - 04/20/2012 :  23:11:07  Show Profile  Reply with Quote
If your purchse latest TSOP48 adapter ADP-003, then it has jumper on it for this chip. The software already supported this chip.
Go to Top of Page
Reply #2

krozzen

Philippines
11 Posts

Posted - 04/24/2012 :  02:09:08  Show Profile  Reply with Quote
unfortunately i have bought the version 2 TSOP48 adapter ADP-003 and i hope theirs a solution for this aside from buying a new version. Ive seen version 1 TSOP48 adapter ADP-003 rewired hoped you can advice me how to fix my tsop48 version 2
Go to Top of Page
Reply #3

krozzen

Philippines
11 Posts

Posted - 04/24/2012 :  18:19:59  Show Profile  Reply with Quote
i try to flash spansion s29gl064n0tf103, this chips is not supported in gq-4x? i use version 2 tsop48 adp-003. then it prompt me to the site http://www.mcumall.com/support/ ADP-003_MOD_01.jpg
Go to Top of Page
Reply #4

ZLM

2923 Posts

Posted - 04/24/2012 :  21:50:17  Show Profile  Reply with Quote
Yes. If your adapter is not V3, then you need a modification on it.
Go to Top of Page
Reply #5

krozzen

Philippines
11 Posts

Posted - 04/25/2012 :  19:51:19  Show Profile  Reply with Quote
do you have schematic diagram to modify my version 2? i try to follow the modification of tsop48 version 1 but i cant its hard since its more complex and its diff layout. pls help me badly needid
Go to Top of Page
Reply #6

ZLM

2923 Posts

Posted - 04/25/2012 :  23:05:35  Show Profile  Reply with Quote
I have n schematic. The modify is not difficult, only cut one trace and add one wire.
Go to Top of Page
Reply #7

krozzen

Philippines
11 Posts

Posted - 04/26/2012 :  20:22:46  Show Profile  Reply with Quote
kindly post the schematic or picture diagram or any layout for modification or please send it to my email add maxz_burn@yahoo.com
hope its the solution I've been waiting for..
Go to Top of Page
Reply #8

ZLM

2923 Posts

Posted - 04/27/2012 :  00:10:08  Show Profile  Reply with Quote

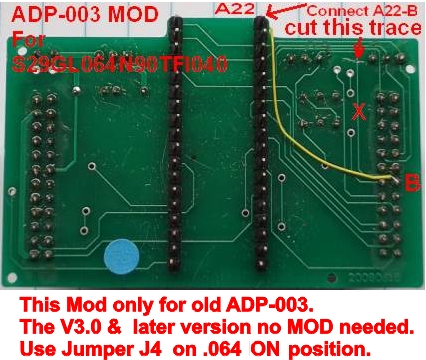

see


Image Insert:

154.96 KB
Go to Top of Page
Reply #9

krozzen

Philippines
11 Posts

Posted - 04/28/2012 :  01:32:03  Show Profile  Reply with Quote

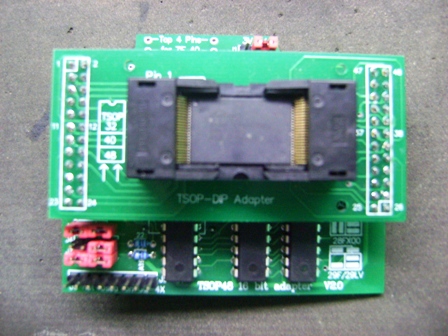

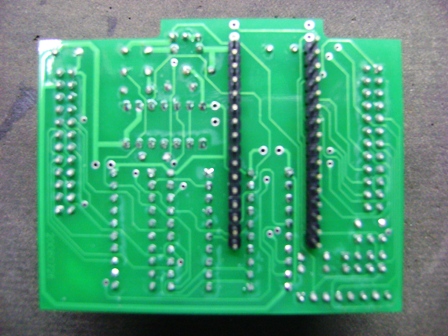

ive seen it but its version 1, what i have is version 2.

Image Insert:

112.39 KB
Go to Top of Page
Reply #10

krozzen

Philippines
11 Posts

Posted - 04/28/2012 :  01:35:56  Show Profile  Reply with Quote


Image Insert:

104.05 KB

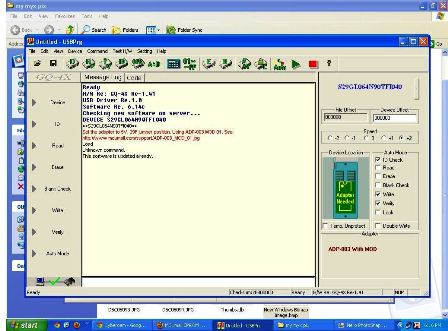

this the spansion s29gl064n0tf103 chip error i encounter

Image Insert:

36.96 KB
Go to Top of Page
Reply #11

ZLM

2923 Posts

Posted - 04/28/2012 :  23:33:16  Show Profile  Reply with Quote
Your adapter is not designed by MCUmall. So, no way to modefy it based my picture.
Go to Top of Page
Reply #12

krozzen

Philippines
11 Posts

Posted - 04/29/2012 :  19:52:35  Show Profile  Reply with Quote
OMG!!!
what is the compatible adapter for s29glo64?? do you have compatible tsop 48 for this kind of ic (s29glo64).

can you help me what ADP-003 With MOD mean?
Can it support 8/16 bit?

Edited by - krozzen on 04/30/2012 02:22:41
Go to Top of Page
Reply #13

ZLM

2923 Posts

Posted - 05/01/2012 :  20:18:57  Show Profile  Reply with Quote
The S29GL064N90TFI040 is supported n GQ-4X with latest software.

The adapter ADP-003 V3 has a jumper for this chip. If you do not have ADP-003 V3, then you have to mode your earlier version ADP-003 based on above picture.

This chip is confrimed work with ADP-003 V3.
Go to Top of Page
Reply #14

krozzen

Philippines
11 Posts

Posted - 05/10/2012 :  22:52:39  Show Profile  Reply with Quote
i only have 16 bit adapter and i try to locate a21 but only vpp. i cut the connection in vpp and there nothing change it same error cant read the chips..
Go to Top of Page
Reply #15

krozzen

Philippines
11 Posts

Posted - 05/11/2012 :  00:40:22  Show Profile  Reply with Quote
i been searching for ADP-003 v3 and it price but i wonder if it available in the market coz i have not seen it. i been searching for it... it not available here in mcumall?
Go to Top of Page
Reply #16

ZLM

2923 Posts

Posted - 05/11/2012 :  13:26:36  Show Profile  Reply with Quote
The current item is V3. The image is just updated.
See:
http://www.mcumall.com/comersus/store/comersus_viewItem.asp?idProduct=3102


Image Insert:

39.96 KB
Go to Top of Page
Reply #17

krozzen

Philippines
11 Posts

Posted - 05/30/2012 :  22:04:47  Show Profile  Reply with Quote
can i just buy the version 3 adapter, since i already have the tsop. how much would it cost???
Go to Top of Page
Reply #18

ZLM

2923 Posts

Posted - 05/31/2012 :  22:02:48  Show Profile  Reply with Quote
http://www.mcumall.com/comersus/store/comersus_viewItem.asp?idProduct=4400
Go to Top of Page
