 Problems using the MCUMall 16bit adapter - Solved
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

jensmaa

Germany
9 Posts

Posted - 01/09/2013 :  04:33:42  Show Profile  Reply with Quote
Hey folks!

Since I failed miserably with this adaptor... http://www.mcumall.com/forum/topic.asp?TOPIC_ID=4997

...I bought a MCUMall 16bit adaptor. Unfortunatly I still can't manage to burn the eprom :(

I attached some pictures:

The adaptor:

http://www.jensma.de/upload/files/hW01Y6pL__DSC_0585.jpg

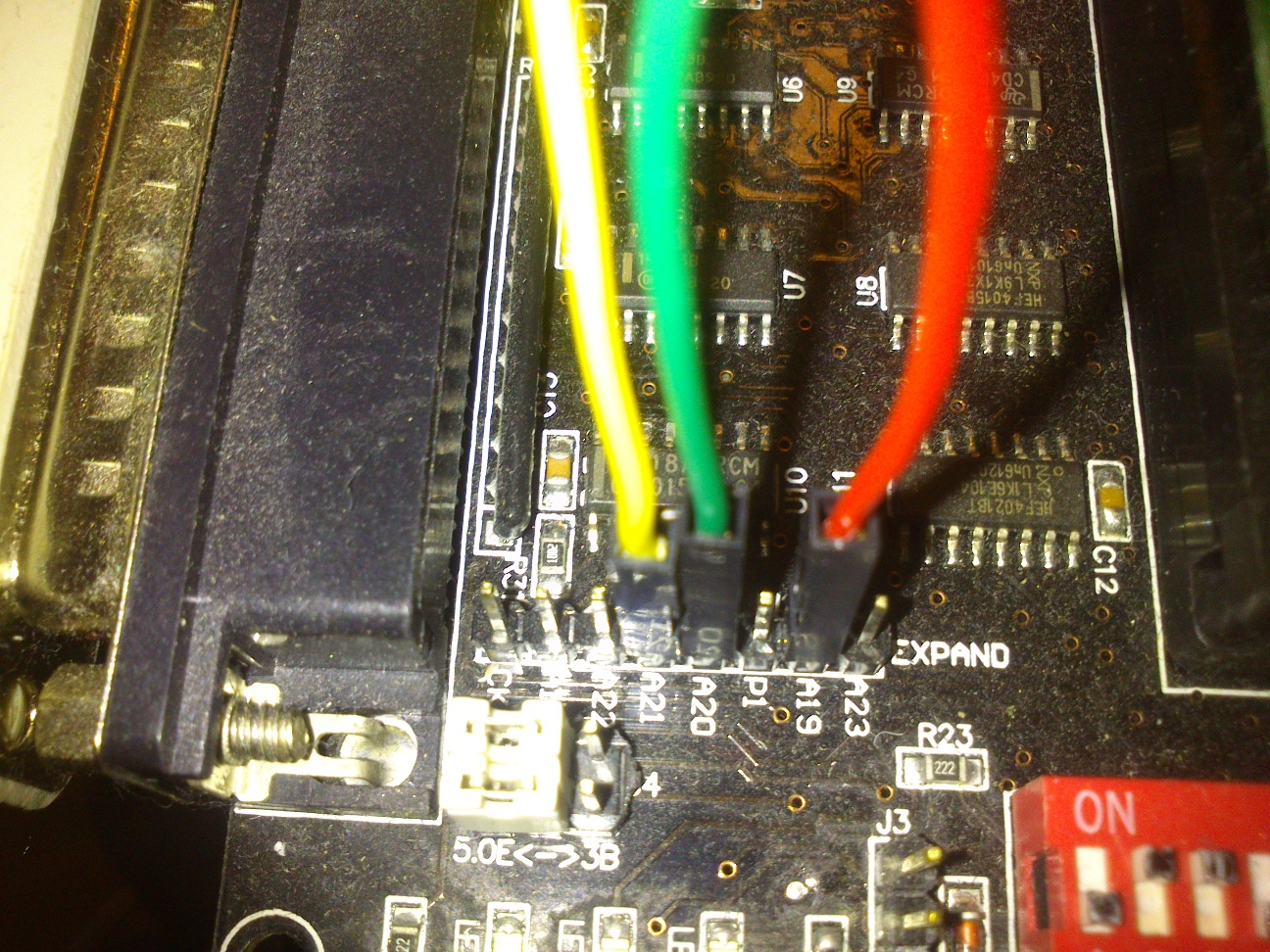

The adress wires connected to the programmer:

http://www.jensma.de/upload/files/I654mYVb__DSC_0587.jpg

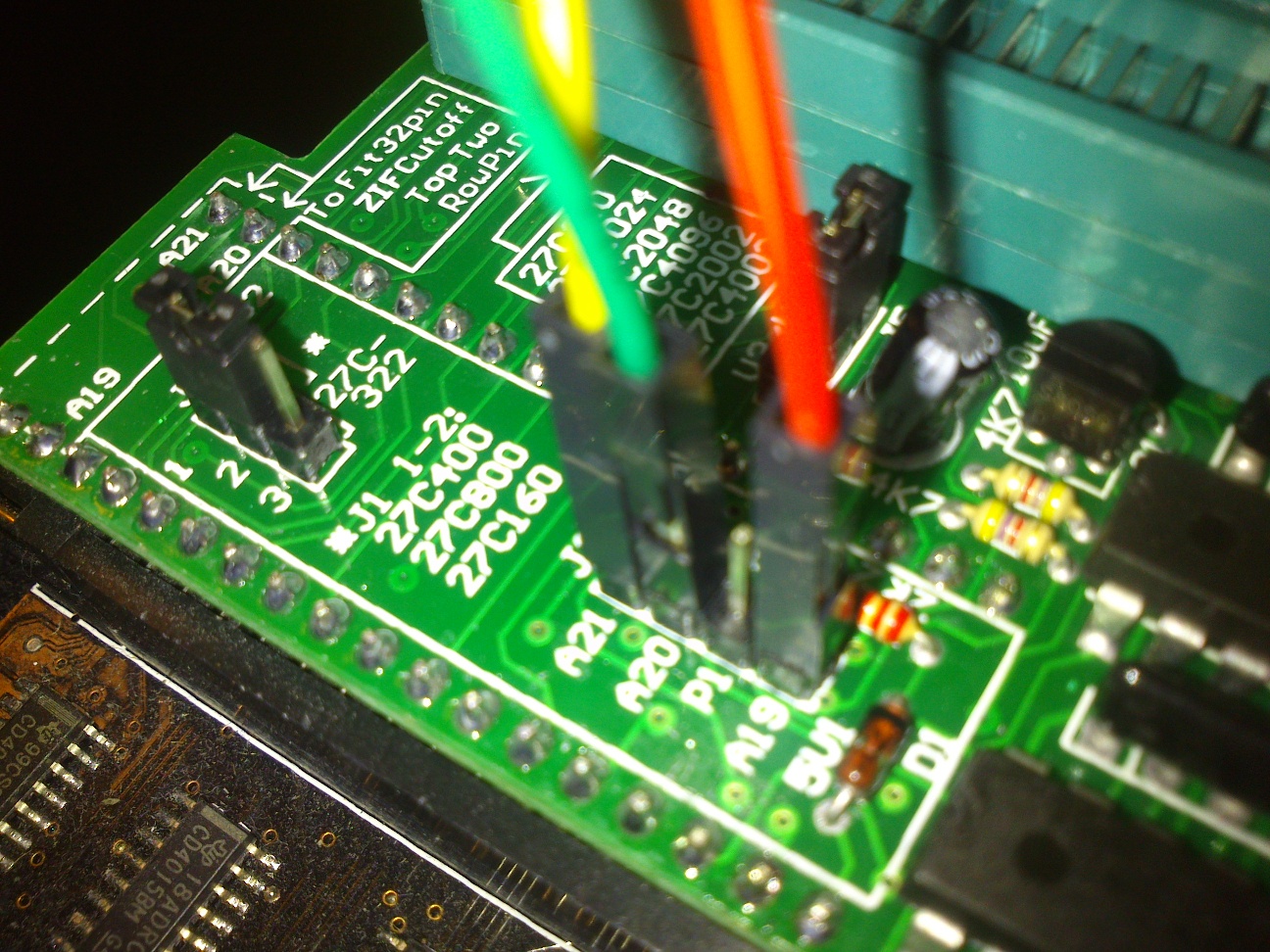

The adress wires connected to the adaptor:

http://www.jensma.de/upload/files/ZnsgUAQv__DSC_0588.jpg

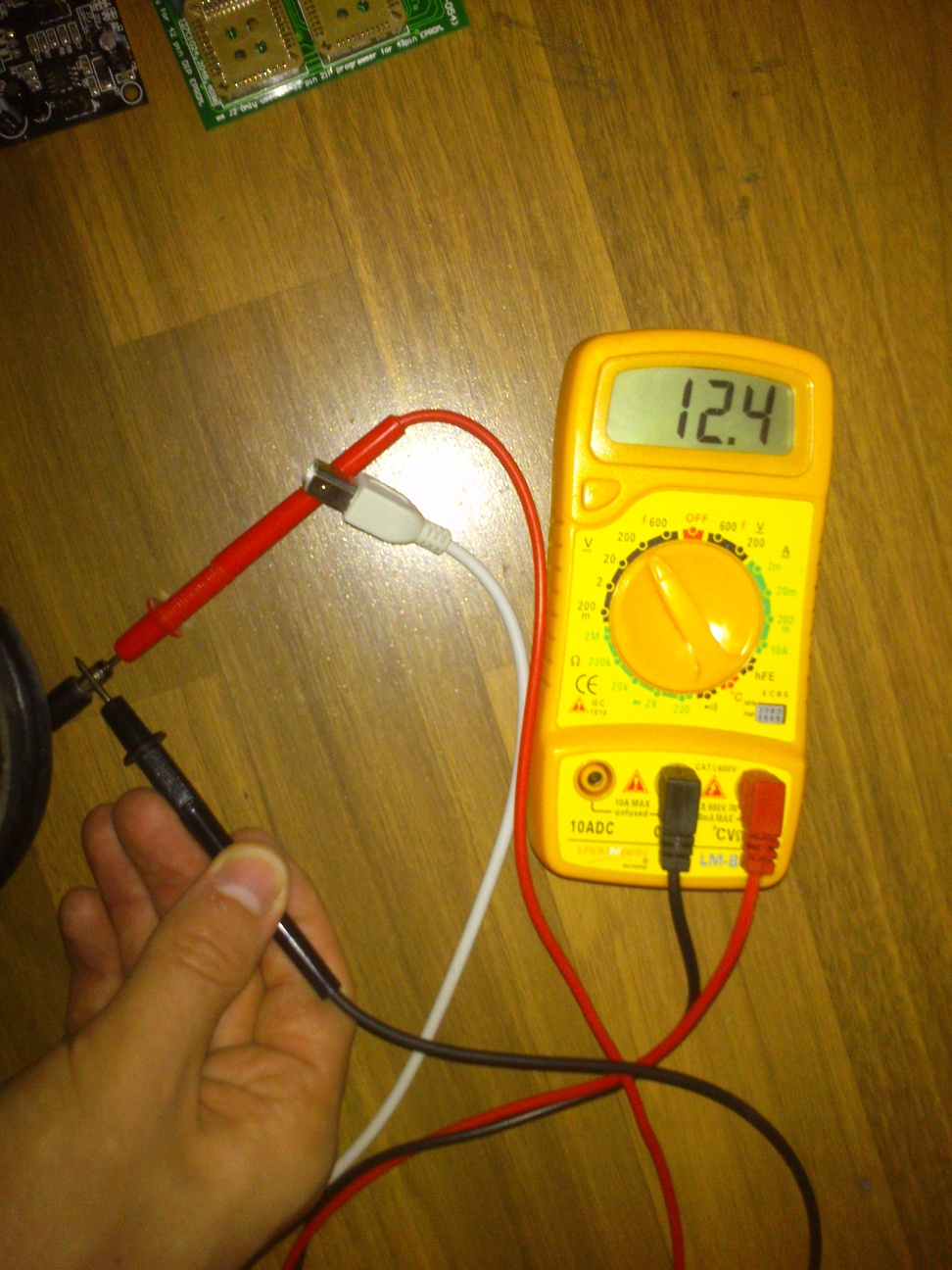

I've got a wall wart connected with ~12V:

http://www.jensma.de/upload/files/Y5Mhsw5u__DSC_0592.jpg

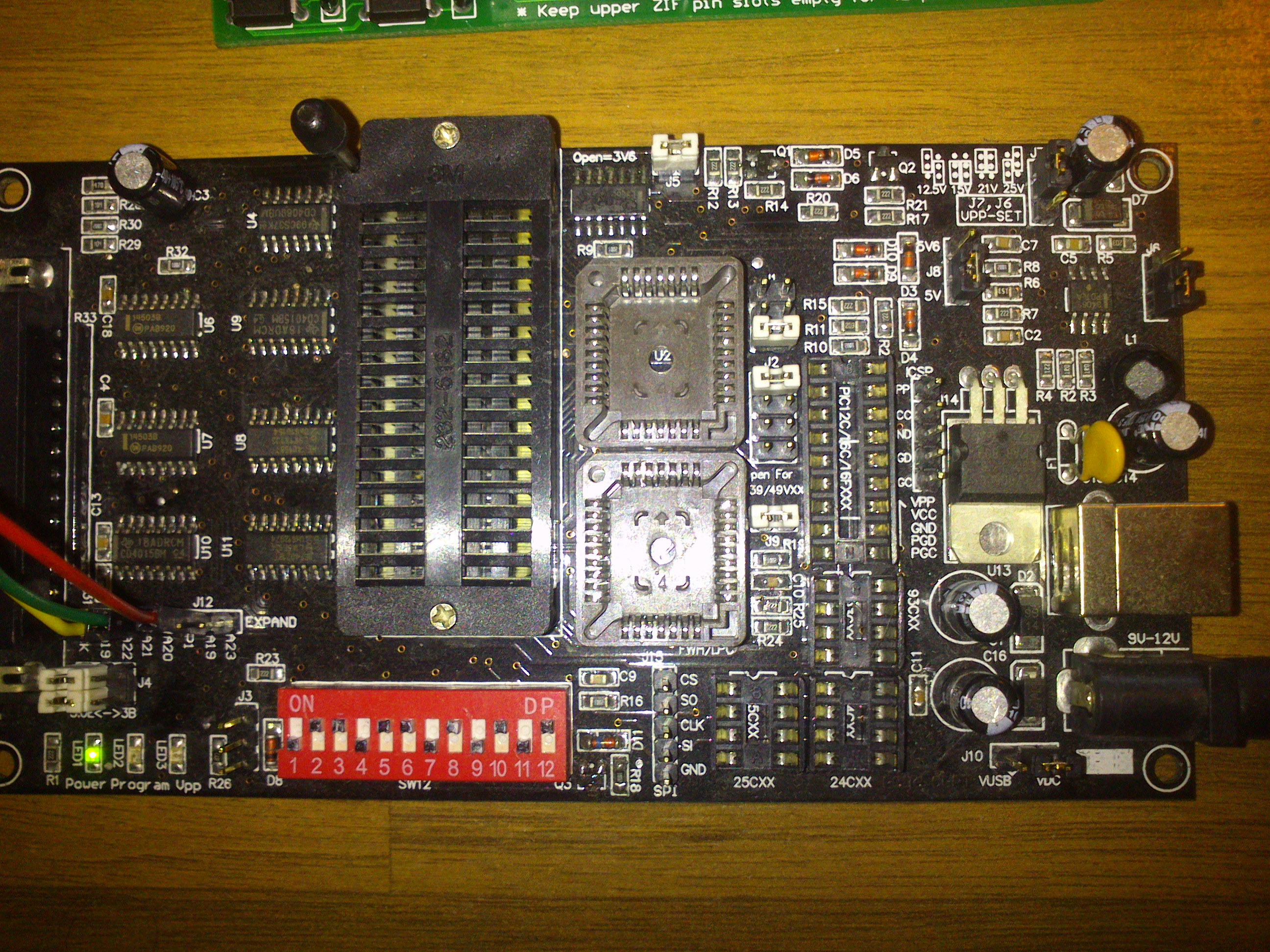

The programmer:

http://www.jensma.de/upload/files/onTsdbkE__DSC_0589.jpg

Any help is much appreciated :)

With the jumper next to the dipf and p1 connected, everything worked after re-erasing the eprom :)

Edited by - jensmaa on 01/09/2013 05:37:09
Reply #1

jensmaa

Germany
9 Posts

Posted - 01/09/2013 :  04:38:49  Show Profile  Reply with Quote
Ah, I forgot to jumper J3, right beside the dip switches. Testing now with jumper set. If you notice any other mistakes, don't hesitet to answer :)
Go to Top of Page
Reply #2

jensmaa

Germany
9 Posts

Posted - 01/09/2013 :  04:44:06  Show Profile  Reply with Quote
Well, with the jumper set, the first bytes (aborting at 0x00E8BF right now) are written successfully then the process is aborted. Any ideas :(?

I connected P1 too, it's still failing.

Edited by - jensmaa on 01/09/2013 05:05:02
Go to Top of Page
Reply #3

ZLM

2937 Posts

Posted - 01/18/2013 :  21:29:42  Show Profile  Reply with Quote
Try to change V3/V4 on adapter.
Go to Top of Page
Reply #4

jensmaa

Germany
9 Posts

Posted - 01/31/2013 :  11:51:21  Show Profile  Reply with Quote
quote:
Originally posted by ZLM

Try to change V3/V4 on adapter.



Worked like a charm, thank you :)
