 TSOP48 16bit adapter V2.0		  New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

cemswan

7 Posts
Posted - 07/17/2014 :  02:17:21  Show Profile  Reply with Quote
Hello @all

follow problem..hope any can help me.

ADAPTER TSOP48 16bit V2.0
Chip to burn: AM29f032B
Programmer: GQ-4X with latest soft 6.30

I solder the 4 extra pins but i dont become any Chip ID evertime fails or wrong ID aso.

I put the chip on PIN 1 in adapter not working
Put the Chip in the middle 2pins free aso NOT WORKING
Same Chip on PCB5.0 working fine

Whats going wrong can any me advise for ?

Need any Pictures ???so i can upload

Many thx.
Reply #1

ZLM

2937 Posts
Posted - 07/18/2014 :  21:06:58  Show Profile  Reply with Quote
AM29f032B? It is TSOP40 chip. Why you put it in a TSOP48 16 bit adapter?

post your adapter picture.
Go to Top of Page
Reply #2

cemswan

7 Posts
Posted - 07/21/2014 :  02:27:39  Show Profile  Reply with Quote
cant insert image and no link set

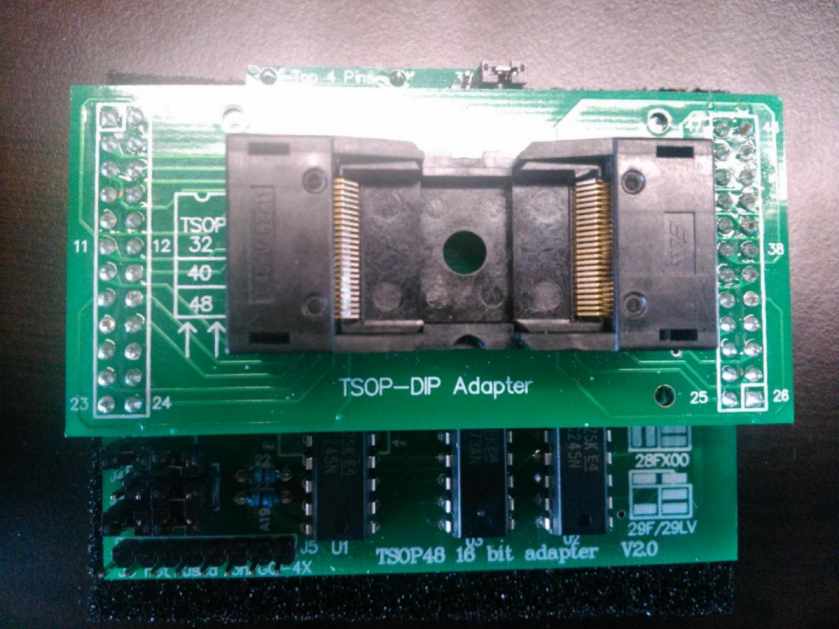

h**p://digiprint-swan.eu/v20.jpg is the picture

many thx



Image Insert:

48.56 KB
Edited by - cemswan on 07/21/2014 02:28:55
Go to Top of Page
Reply #3

ZLM

2937 Posts
Posted - 07/22/2014 :  08:23:47  Show Profile  Reply with Quote
The base adapter is wrong. The top board is correct.

You need ADP-082 base adapter for TSOP40 chip.
see:

http://www.mcumall.com/comersus/store/comersus_viewItem.asp?idProduct=4418
Go to Top of Page
