 True USB Willem Programmer (GQ-2X, GQ-3X, GQ-4X)
 Someone could translate this?
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

anniel

2108 Posts

Posted - 06/16/2016 :  06:36:47  Show Profile  Reply with Quote

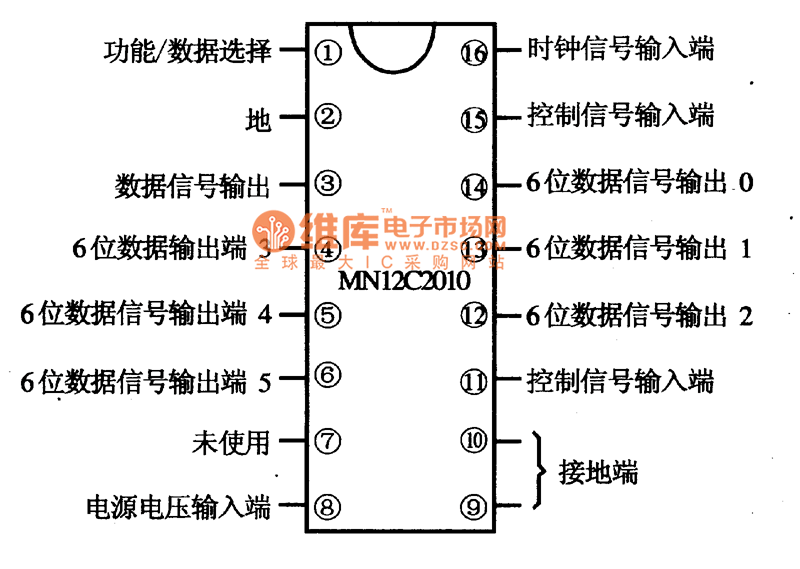

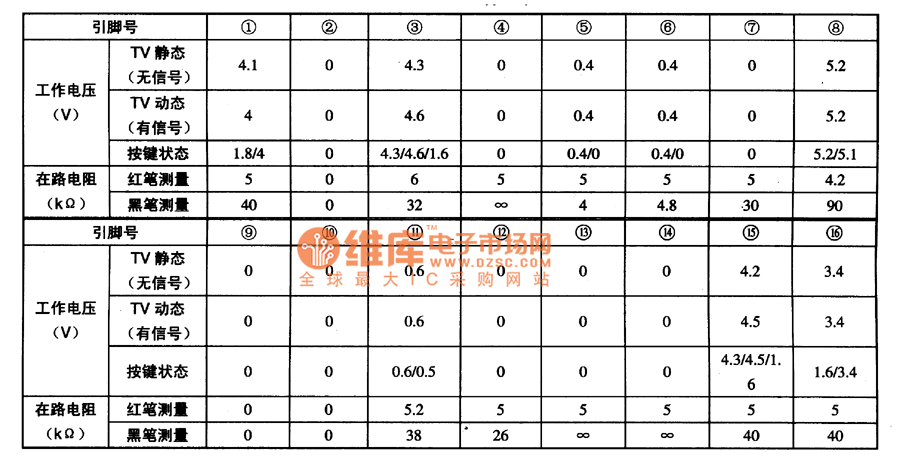

Image Insert:

65856 bytes

Image Insert:

74828 bytes

www.seekic.com/circuit_diagram/Sensor_Circuit/MN12C2010_Memory_Integrated_Circuit.html



Edited by - anniel on 06/16/2016 06:45:33
Reply #1

ZLM

2923 Posts

Posted - 06/17/2016 :  20:56:32  Show Profile  Reply with Quote
This chip seems a TV chip.
Go to Top of Page
Reply #2

anniel

2108 Posts

Posted - 06/18/2016 :  03:06:19  Show Profile  Reply with Quote
It is also used in other circuits. It is a MN12C201D and the closest to a pinout diagram I have found is this.
As for a datasheet I only found this www.datasheetarchive.com/dl/Scans-063/DSA2IH00135188.pdf
Go to Top of Page
Reply #3

anniel

2108 Posts

Posted - 06/18/2016 :  03:19:54  Show Profile  Reply with Quote
The MN1220 is a similar device www.datasheetarchive.com/dlmain/Datasheets-110/DSAP008954.pdf
Go to Top of Page
Reply #4

ZLM

2923 Posts

Posted - 06/19/2016 :  10:22:42  Show Profile  Reply with Quote

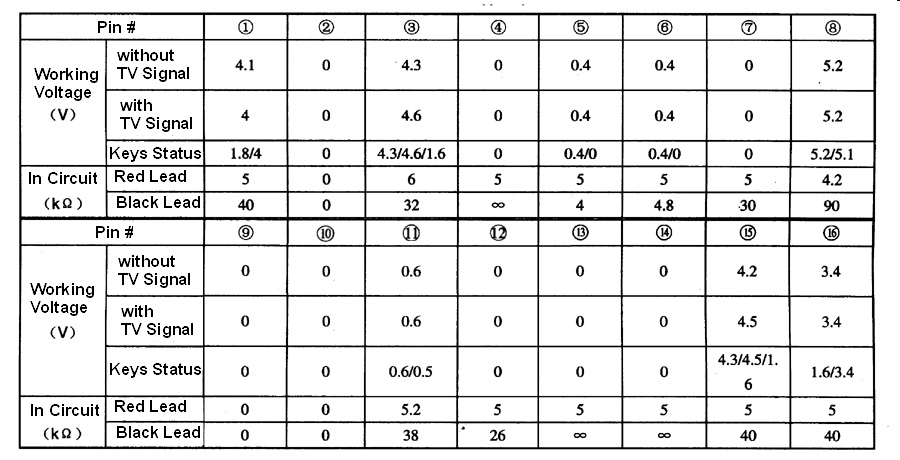

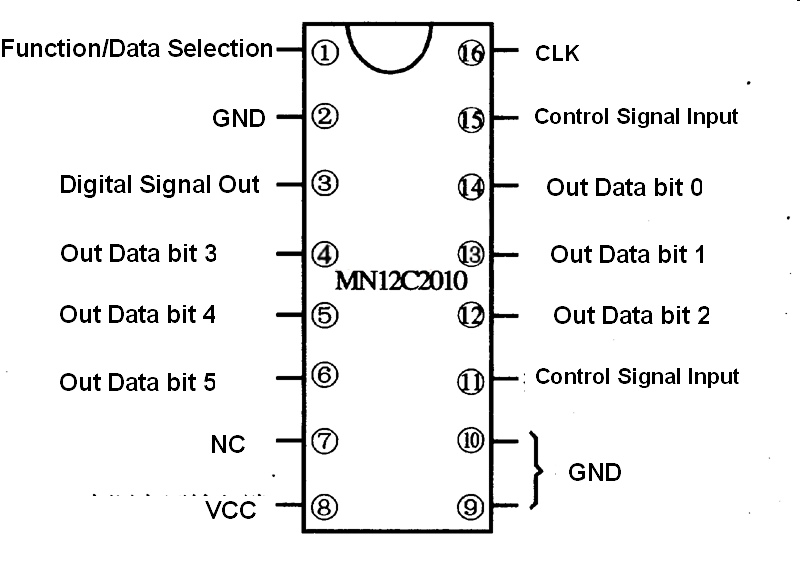

English version pin out:



Image Insert:

91824 bytes



Image Insert:

151755 bytes
Go to Top of Page
Reply #5

anniel

2108 Posts

Posted - 06/19/2016 :  13:34:46  Show Profile  Reply with Quote
Thank you ZLM. Not much info for reading/writing the chip.
Go to Top of Page
