 TMS2564JL Only Writing 40% of .BIN file
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

microbored

3 Posts

Posted - 12/08/2018 :  12:55:48  Show Profile  Reply with Quote
Hi

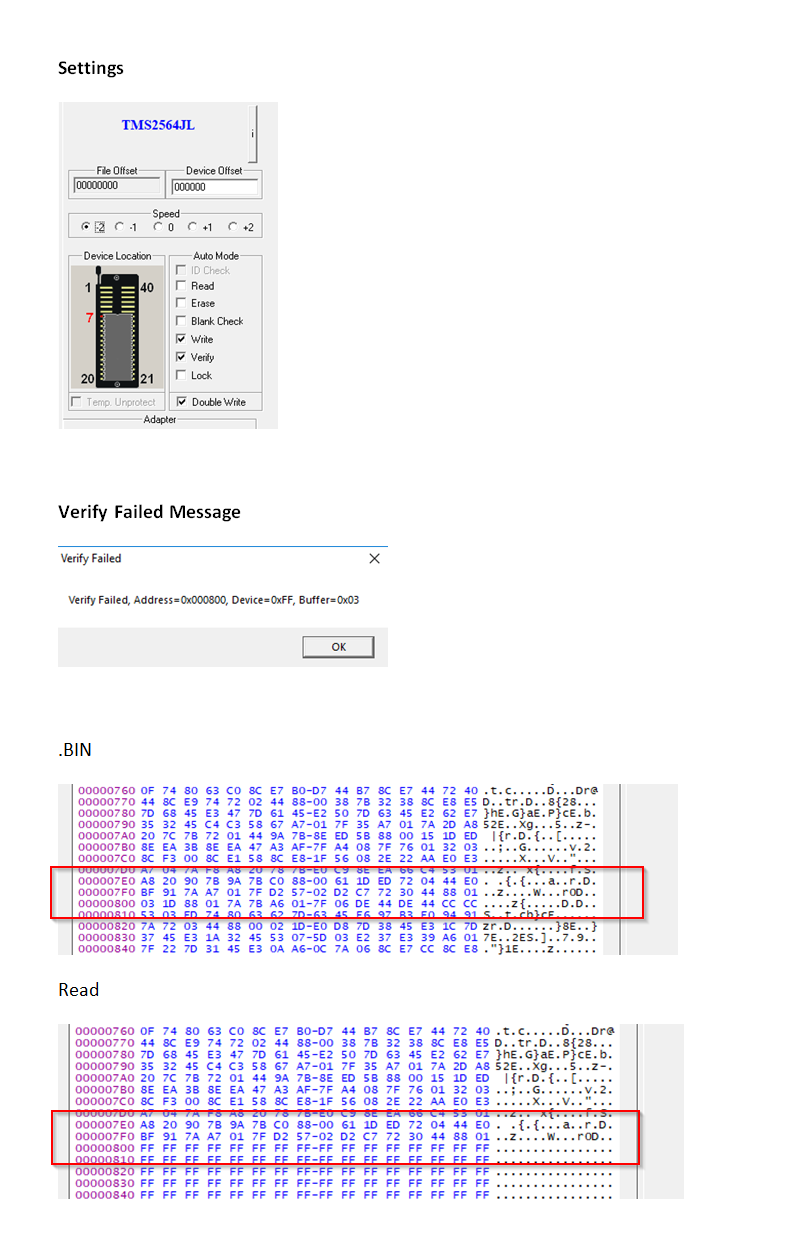

I am programming a TMS2564JL with an external power adapter on a GQ-4x4. It seems to stop writing half way through. Each time I try only 40% seems to be written. Below details my settings, the verify error, the .BIN file and what is read from the chip after the burn.

Device definition: Name="TMS2564JL",ID="XXXX",Class="2564(25V Vpp)",WVCC="5.5V",WVPP="25V",Category="EPROM",MFG="TI",Speed="3";

Any ideas what I might be doing wrong?

Thanks!


243087 bytes

Edited by - microbored on 12/08/2018 13:24:33
Reply #1

anniel

1996 Posts

Posted - 12/08/2018 :  13:29:49  Show Profile  Reply with Quote
quote:
Originally posted by microbored

Hi

I am programming a TMS2564JL with an external power adapter on a GQ-4x4. It seems to stop writing half way through. Each time I try only 40% seems to be written. Below details my settings, the verify error, the .BIN file and what is read from the chip after the burn.

Device definition: Name="TMS2564JL",ID="XXXX",Class="2564(25V Vpp)",WVCC="5.5V",WVPP="25V",Category="EPROM",MFG="TI",Speed="3";

Any ideas what I might be doing wrong?

Thanks!


243087 bytes




Check pin 2 for damages.
Go to Top of Page
Reply #2

microbored

3 Posts

Posted - 12/08/2018 :  14:13:01  Show Profile  Reply with Quote
Thanks. Suggestions on how to check pin 2?

I scoped pin 2 and 27. Pin 2 goes high but 27 never does. Also, when I read in the original chip the second half is also blank. Datasheet: https://bit.ly/2E6JKsz

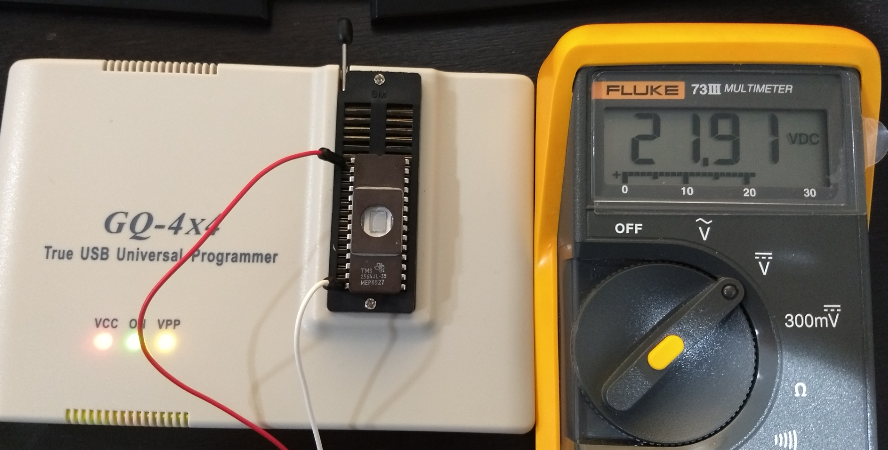

Also, the Vpp and goes to 22v, is that normal?

Image Insert:

736321 bytes
Go to Top of Page
Reply #3

microbored

3 Posts

Posted - 12/12/2018 :  09:26:33  Show Profile  Reply with Quote
Q1) To achieve 25v should I hook a bench power up in series to supply an extra 3v?

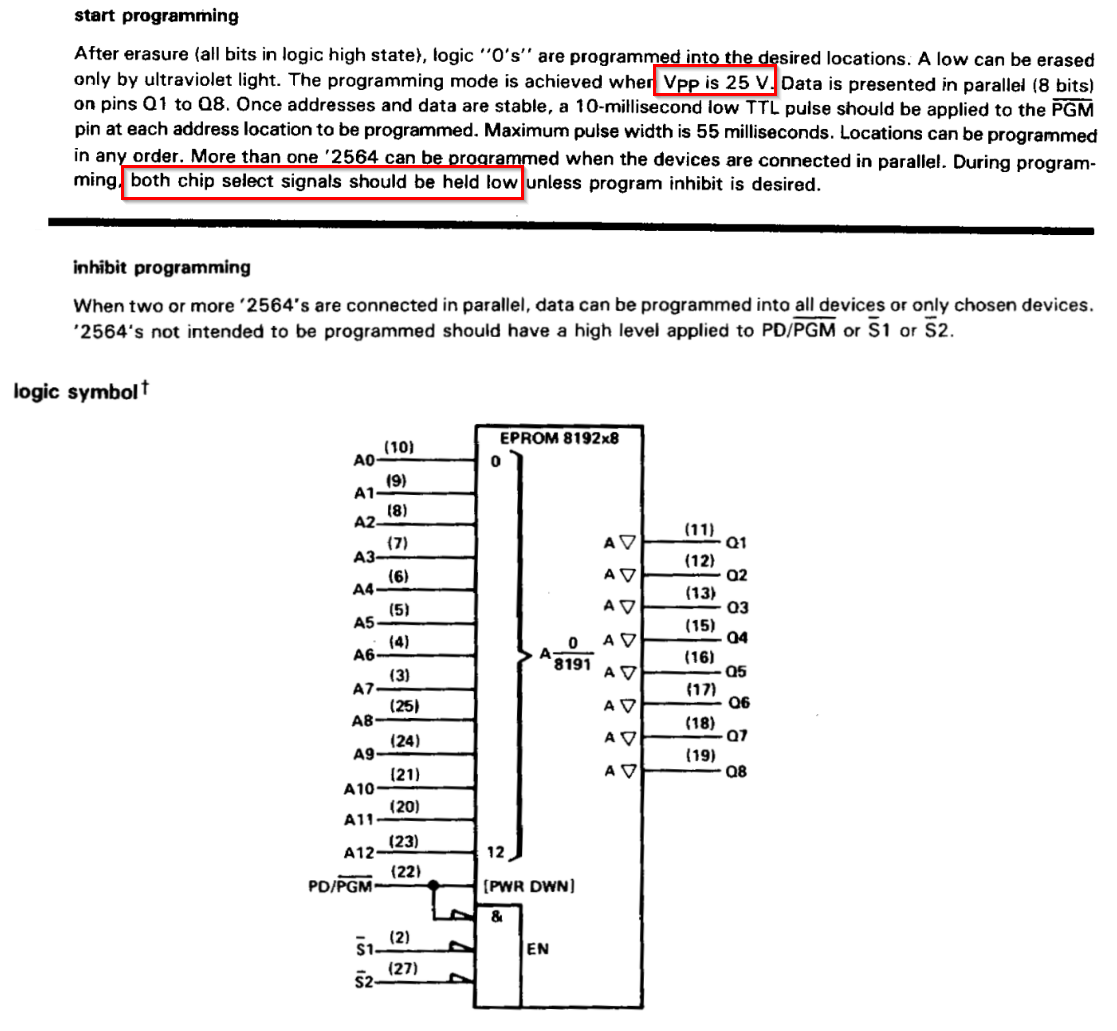

Q2) How do I check pin 2? I don't think pin 2 should be used according to the datasheet.

Image Insert:

278329 bytes

thanks,
