 Problem: E28F640J3 + TSOP56 adapter + EasyPRO L+
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

Corvette_Lee

Brazil
14 Posts

Posted - 04/23/2008 :  23:22:37  Show Profile  Reply with Quote
I have problem with adapter or programmer

EasyPro L+
Adapter TSOP56 Xeltek SA628
Intel Flash E28F640J3A120

Show this error: (I re-check with 3 different flash and cleaning contact)



Image Insert:

100.3 KB




Regards
Mr. Lee

Edited by - Corvette_Lee on 04/23/2008 23:43:26
Reply #1

ZLM

2937 Posts

Posted - 04/24/2008 :  08:15:20  Show Profile  Reply with Quote
Please check the chip orientation in the ZIF socket?
Also, check the contacting between adapter and programmer ZIF.
Try any other chips on the programmer, so that to confirm the programmer is working fine.
Go to Top of Page
Reply #2

Corvette_Lee

Brazil
14 Posts

Posted - 04/24/2008 :  14:59:14  Show Profile  Reply with Quote
quote:
Originally posted by ZLM

Please check the chip orientation in the ZIF socket?
Also, check the contacting between adapter and programmer ZIF.
Try any other chips on the programmer, so that to confirm the programmer is working fine.




Dear ZLM,

- check the chip orientation in the ZIF socket, I check, OK
- check the contacting between adapter and programmer ZIF, I check, OK

I can read with EasyPRO L+:
29F040 with adapter PLCC32 for DIP32, OK
FM27C010 direct read, OK
SST29EE010 direct read, OK

I think, the adapter TSOP56 Xeltek SA628 not is compatible with EasyPRO L+.
I test with different 3 chip E28F640J3A120 and same problem.

Image Insert:

194.79 KB


Regards
Mr. Lee
Go to Top of Page
Reply #3

Corvette_Lee

Brazil
14 Posts

Posted - 04/24/2008 :  18:29:10  Show Profile  Reply with Quote
I spoke with a friend.. with same adapter + flash E28F640J3 + Xeltek SuperPro 580U = work fine.

I think problem of software or firmware of EasyPRO L+



Image Insert:

34.17 KB

Regards
Mr. Lee
Go to Top of Page
Reply #4

ZLM

2937 Posts

Posted - 04/25/2008 :  08:40:03  Show Profile  Reply with Quote
The auto select may not work on this TSOP56 chip.
Go to Top of Page
Reply #5

Corvette_Lee

Brazil
14 Posts

Posted - 04/25/2008 :  13:30:09  Show Profile  Reply with Quote
I test with 4 flash E28F640J3A120 + adapter TSOP56 Xeltek SA628 + EasyPRO L+

and 1 flash TE28F320J3C110 + adapter TSOP56 Xeltek SA628 + EasyPRO L+


same result: “poor contact at pin 22,23,26,27,44,45,46,47”



Image Insert:

12.27 KB

Regards
Mr. Lee
Go to Top of Page
Reply #6

Corvette_Lee

Brazil
14 Posts

Posted - 04/25/2008 :  19:44:27  Show Profile  Reply with Quote
comparing with the image you sent me, have difference in adapters.

with my adapter said "Poor Contact at Pin 22,23,26,27,44,45,46,47" = 8 pin, same amount as this missing pin in my adapter.



Image Insert:

80.9 KB

Edited by - Corvette_Lee on 04/25/2008 19:53:35
Go to Top of Page
Reply #7

Corvette_Lee

Brazil
14 Posts

Posted - 04/26/2008 :  08:56:19  Show Profile  Reply with Quote
Top part ZIF board, not have 8 pin.



Image Insert:

96.97 KB


Can you publish picture of You adapter ?

Regards
Mr. Lee

Edited by - Corvette_Lee on 04/26/2008 08:59:56
Go to Top of Page
Reply #8

Corvette_Lee

Brazil
14 Posts

Posted - 04/27/2008 :  13:42:08  Show Profile  Reply with Quote

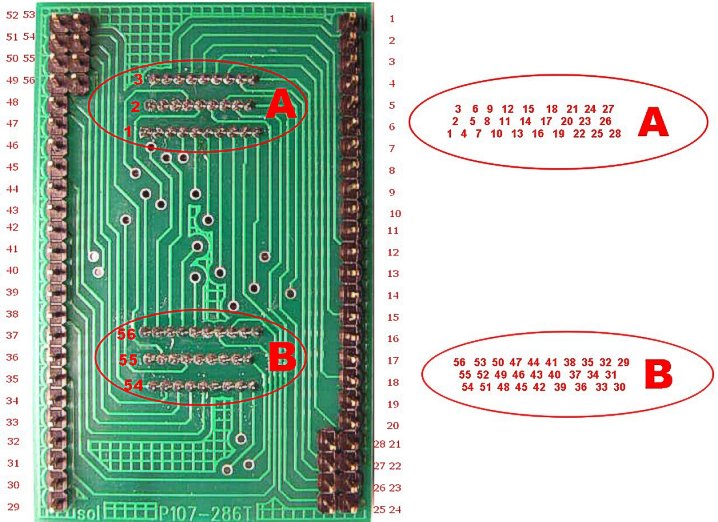

schematic wrong adapter TSOP56

Image Insert:

51.64 KB



Please, send me correct schematic.
Go to Top of Page
Reply #9

ZLM

2937 Posts

Posted - 04/27/2008 :  22:28:17  Show Profile  Reply with Quote


[b]Image Insert:[/b][br][br][size=1] 103.73 KB[/size=1]
Go to Top of Page
Reply #10

Corvette_Lee

Brazil
14 Posts

Posted - 04/28/2008 :  13:32:52  Show Profile  Reply with Quote
This down plate circuit is same?



Image Insert:

24.35 KB

Red not connect.
In same color interconnect


Thanks
Mr. Lee

Edited by - Corvette_Lee on 04/28/2008 13:53:22
Go to Top of Page
Reply #11

Corvette_Lee

Brazil
14 Posts

Posted - 05/21/2008 :  14:20:51  Show Profile  Reply with Quote
Arrived correct adapter, work fine.

I will send wrong adapter for RMA.

Best Regards
Mr. Lee
Go to Top of Page
Reply #12

MaarioS

Poland
6 Posts

Posted - 08/24/2015 :  05:38:41  Show Profile  Reply with Quote
Hello, I just borrowed the photo from above. Does anyone have the same Xeltek TSOP56 adapter?? Can anyone tell me what the space is between those pins?? I marked it as C. Give me dimensions in either mm or inches, doesn't matter. Many thanks in advance!!


Image Insert:

127.54 KB
