 Willen PCB 3.1 just quit Help.
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

DarrenAnderson

USA
7 Posts

Posted - 08/28/2009 :  16:34:48  Show Profile  Reply with Quote
Hello, I have a Willem programmer I believe it is a PCB 3.1 Version
Dual Power.

I also believe that DL had at one time sent me a power supply conversion diagram to help with my Low Vcc and Low Vpp while programming Eproms.
All was working Perfectly untill this time. I can not get a good "read" on a 27C256. I have came to this conclusion by lining up the Images from the chip and doing a compair. And also while trying to Verify the read. Failes at various places.
I have tried 3 Computers, 4 Cables ect...

I did find a broken resistor labled 2K2 in the upper left side, but with that broke I could not even detect the hardware.
Any thoughts on where to start looking?
I have verified proper Vcc 5.2 Volts but that is about as far as I have gone.

I have read that there is a resistor mod that cam be made to make it read better, or did I mis-read that.
Please help, I really need to read this Chip.
Thank you
Reply #1

DarrenAnderson

USA
7 Posts

Posted - 08/28/2009 :  19:00:26  Show Profile  Reply with Quote

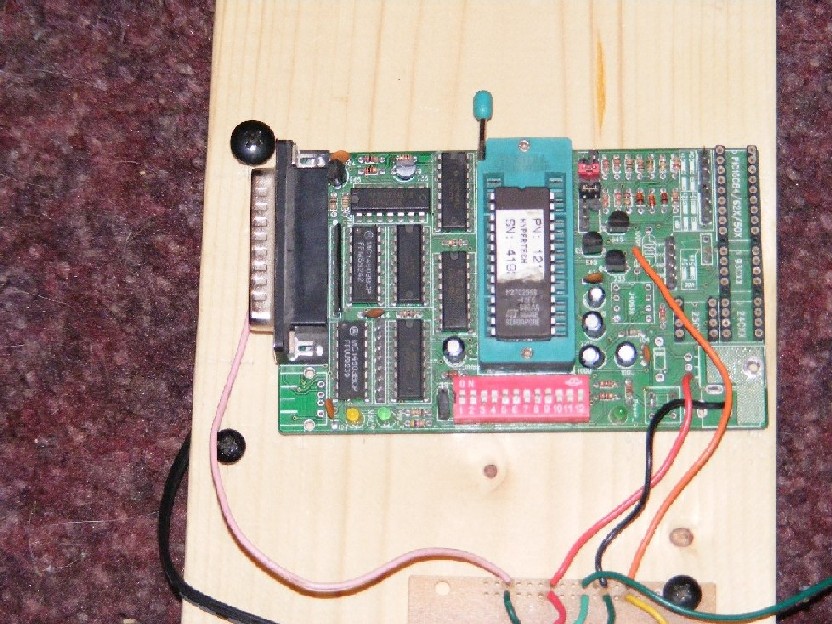

Here is a Shot of My Programmer The upper Left Resistor was the broken one. But I found an exact replacement.

Image Insert:

188.26 KB
Go to Top of Page
Reply #2

DarrenAnderson

USA
7 Posts

Posted - 08/30/2009 :  09:01:11  Show Profile  Reply with Quote
OK, new problem. I thought I would test another type of Chip. I used an AT29C512 Flash Chip. No Joy on that one. reads, but not correct, and Can't erase at all, times out.
Tried 3 Cables and 2 PC's
Anyone ever See this type of PCB3? andone have the "parts Placement" diagram? Or Schematic? The PCB 3 Schematic posted here, does not have all of the right parts, or proper Values.

And it was DL that had sent me the "new" power supply diagram. I found it in an old E-Mail.
Go to Top of Page
Reply #3

DarrenAnderson

USA
7 Posts

Posted - 08/31/2009 :  21:25:15  Show Profile  Reply with Quote
OK, SO I went through this Programmer again, and this time I paid extra attention to the DIP switches. SW 5 and 9 both read OPEN when closed. Ran Jumper wires and VOLA she worked just fine.
