 Anyone Have a Parts layout
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

DarrenAnderson

USA
7 Posts

Posted - 08/31/2009 :  17:58:27  Show Profile  Reply with Quote

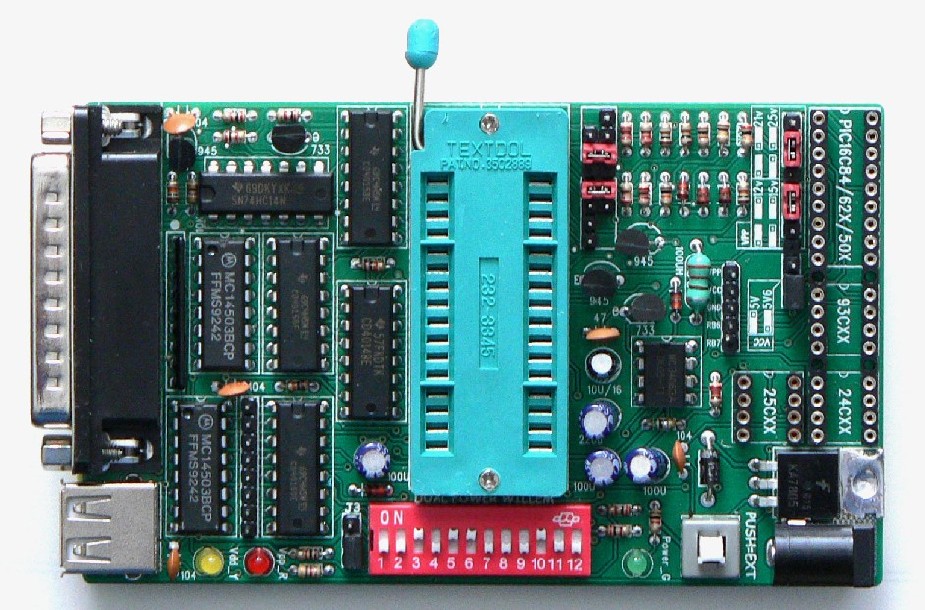

Layout that Includes Resistors labled as R9 R3 ect???

Image Insert:

195.53 KB
Reply #1

ZLM

2936 Posts

Posted - 09/09/2009 :  08:36:32  Show Profile  Reply with Quote
This hardware version should from standard PCB3B, see:
http://www.mcumall.com/forum/topic.asp?TOPIC_ID=2028
Go to Top of Page
Reply #2

DarrenAnderson

USA
7 Posts

Posted - 09/15/2009 :  22:00:49  Show Profile  Reply with Quote
Hey, thanks for the reply. But I was hoping for the PCB layout diagram.
Thats the one thing that they forgot to send with when I got this Programmer
