 GQ-4X how to write MXIC MX25U6435F
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

83Air

Slovenia
9 Posts

Posted - 12/09/2015 :  13:04:08  Show Profile  Reply with Quote
Hi there
I have GQ-4X programmer and try to use MXIC MX25U6435F.
I did buy the appropriate adapters( ADP-099 and ADP-081a).
I don`t know which device to select(mx25u6435f is not on the list).

Any help is appreciated

datasheet
h**p://www.macronix.com/Lists/DataSheet/Attachments/3213/MX25U6435F,%201.8V,%2064Mb,%20v1.4.pdf
Reply #1

ZLM

2937 Posts

Posted - 12/09/2015 :  19:03:33  Show Profile  Reply with Quote
Try :


Name="MX25U6435F",ID="C22537",Class="W25X10",Category="SERIAL_EPROM",MFG="Winbond",Vcc="5V",CodeSize="8388608",Adapter="ADP-081+ADP-099 adapter",Message="Make sure the ADP-099 is used. The programmer will supply 5V voltage. Without ADP-099, the chip maybe damaged.";
Go to Top of Page
Reply #2

83Air

Slovenia
9 Posts

Posted - 12/11/2015 :  16:38:52  Show Profile  Reply with Quote
erase appears to work
blank check fails
read appears to work
write stuck at 0%
Go to Top of Page
Reply #3

ZLM

2937 Posts

Posted - 12/14/2015 :  20:44:12  Show Profile  Reply with Quote
does ID work?
Go to Top of Page
Reply #4

83Air

Slovenia
9 Posts

Posted - 12/15/2015 :  11:22:29  Show Profile  Reply with Quote
no, ID does not work.
Go to Top of Page
Reply #5

ZLM

2937 Posts

Posted - 12/15/2015 :  12:34:36  Show Profile  Reply with Quote
There are many factors cause the ID fail.

Try to use another supported chip to confirm the adapter ADP-081 and ADP-099 work. Then we can focus on the software.
Go to Top of Page
Reply #6

83Air

Slovenia
9 Posts

Posted - 12/16/2015 :  01:22:44  Show Profile  Reply with Quote
I tried to test with both adapters(ADP-099 set to 2.5V) on a MX25l8005m and i worked, ID check ok(correctly recognized eprom as mx25l8005m).
Go to Top of Page
Reply #7

83Air

Slovenia
9 Posts

Posted - 01/16/2016 :  04:20:12  Show Profile  Reply with Quote
It took me a while to get another mx25u6435f to test, still does not recognize the device.
Any ideas ?

Edited by - 83Air on 01/16/2016 04:21:01
Go to Top of Page
Reply #8

83Air

Slovenia
9 Posts

Posted - 01/25/2016 :  14:30:00  Show Profile  Reply with Quote
ID checks ok without ADP-099 on mx25u6435f
Go to Top of Page
Reply #9

ZLM

2937 Posts

Posted - 01/26/2016 :  10:43:11  Show Profile  Reply with Quote
OK. This one I think the software need a tweak. I will request a testing chip and hen test it then. I will post the result here.
Go to Top of Page
Reply #10

83Air

Slovenia
9 Posts

Posted - 01/26/2016 :  15:40:56  Show Profile  Reply with Quote
thank you
Go to Top of Page
Reply #11

ZLM

2937 Posts

Posted - 04/09/2016 :  17:19:33  Show Profile  Reply with Quote
I finally did a test on this chip with ADP-099.

However, there is a compatibility issue.

The only way to solve the problem is to modify the ADP-099.

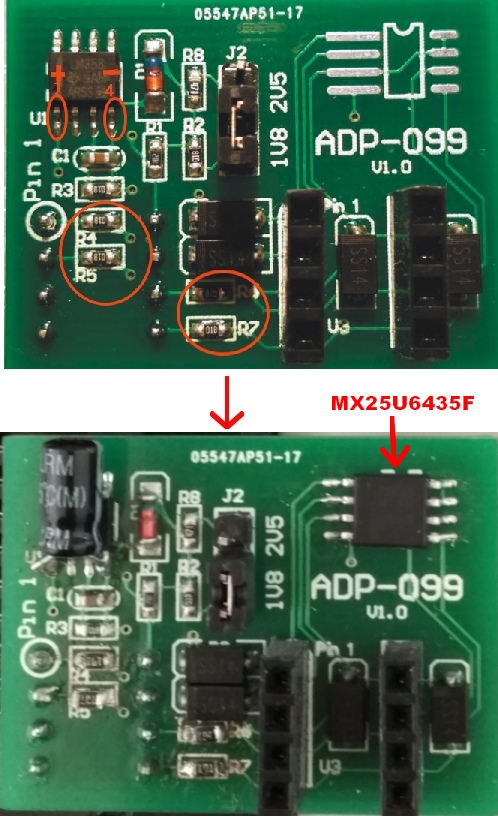

Here is what I did:

1. changed R4,R5,R6,R7 to 100 ohm resistors.
2. added a 10uF capacitor on IC U1 pin 1 and 4. Pin 4 is ground, pin 1 is positive.

After modification, I successfully ID, read, erase, write, verify the MX25U6435F.


Image Insert:

174563 bytes
Go to Top of Page
Reply #12

83Air

Slovenia
9 Posts

Posted - 08/29/2016 :  02:37:31  Show Profile  Reply with Quote
I am sorry it took so long to reply.
The thing is it still doesn`t work, but that may be because i damaged the eeprom, when i was testing it without the adp-099 adapter, and i don`t have another mx25u6435f eeprom to test.
Go to Top of Page
Reply #13

pashha

Turkey
18 Posts

Posted - 12/25/2019 :  01:02:06  Show Profile  Reply with Quote
quote:
Originally posted by ZLM

I finally did a test on this chip with ADP-099.

However, there is a compatibility issue.

The only way to solve the problem is to modify the ADP-099.

Here is what I did:

1. changed R4,R5,R6,R7 to 100 ohm resistors.
2. added a 10uF capacitor on IC U1 pin 1 and 4. Pin 4 is ground, pin 1 is positive.

After modification, I successfully ID, read, erase, write, verify the MX25U6435F.


Image Insert:

174563 bytes



it works! Thank you dear (By the way.. 100 ohm resistor is labeled with 101)

GQ-4X
Go to Top of Page
Reply #14

anniel

2529 Posts

Posted - 12/25/2019 :  05:31:19  Show Profile  Reply with Quote
quote:
Originally posted by pashha

quote:
Originally posted by ZLM

I finally did a test on this chip with ADP-099.

However, there is a compatibility issue.

The only way to solve the problem is to modify the ADP-099.

Here is what I did:

1. changed R4,R5,R6,R7 to 100 ohm resistors.
2. added a 10uF capacitor on IC U1 pin 1 and 4. Pin 4 is ground, pin 1 is positive.

After modification, I successfully ID, read, erase, write, verify the MX25U6435F.


Image Insert:

174563 bytes



it works! Thank you dear (By the way.. 100 ohm resistor is labeled with 101)

Thank you for your testimonial.
