 Help connecting eeprom to my GQ-3X
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

padletut

Norway
1 Posts

Posted - 01/09/2018 :  04:24:52  Show Profile  Reply with Quote
As I can see I connect

VCC to VCC
GND to GND

Rumors says it's 24C02

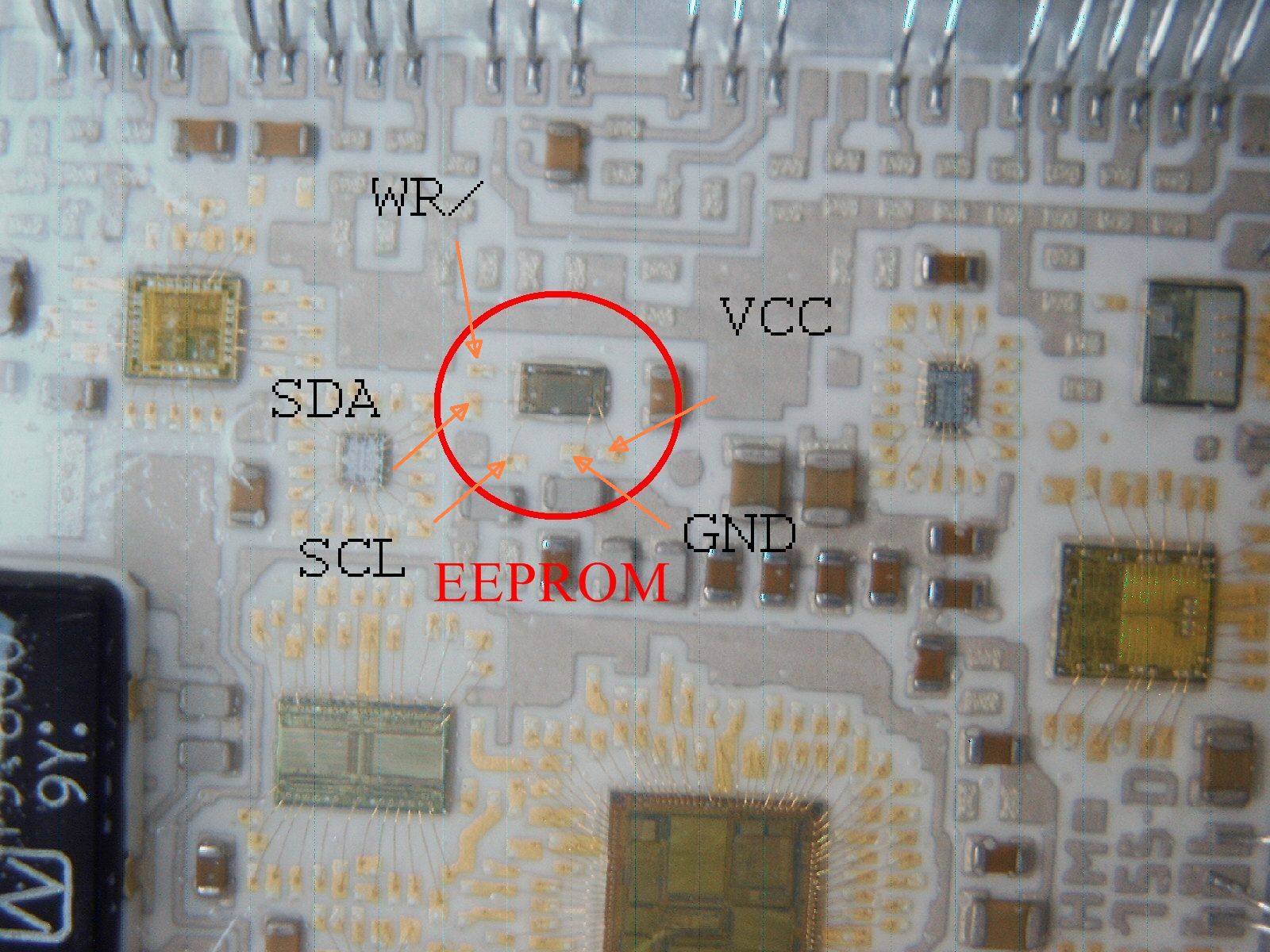

Where do I connect SDA,SCL and WR? See picture

Image Insert:

298206 bytes

Edited by - padletut on 01/09/2018 06:11:47
Reply #1

anniel

2531 Posts

Posted - 01/09/2018 :  06:38:44  Show Profile  Reply with Quote
quote:
Originally posted by padletut

As I can see I connect

VCC to VCC
GND to GND

Rumors says it's 24C02

Where do I connect SDA,SCL and WR? See picture

Image Insert:

298206 bytes



For in circuit programming use an external power supply for your device without connecting VCC to your programmer.

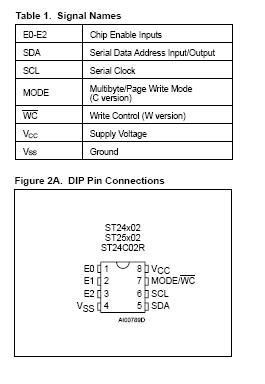

Select 24C02 in the device menu and use the following on the ZIF.
