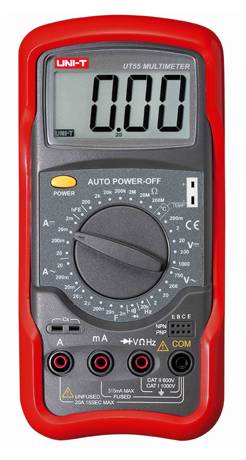

TOOL-025 UT55 Advanced Digital Multimeter

Price:
US$59.00 CAD$60.77 Euro€48.38 GBP£40.12

More info...
Visits: 484




Add to wish list

Description:

SPECIFICATIONS
Basic Functions Range Best Accuracy
DC Voltage 200mV/2V/20V/200V/1000V (0.5%+1)
AC Voltage 2V/20V/200V/750V (0.8%+3)
DC Current 2mA/20mA/200mA/20A (0.8%+1)
AC Current 20mA/200mA/20A (1%+3)
Capacitance 2nF/20nF/200nF/2mF/20mF (4%+3)
Frequency 20kHz (1.5%+5)
Temperature (oC) -20oC~1000oC (1%+3)
Resistance 200W/2kW/20kW/200kW/2MW/20MW/200MW (0.8%+1)
Special Functions
Transistor
Diode
Continuity Buzzer
Sleep Mode
Low Battery Display
Input Impedance for DC Voltage Measurement 10MW
Max. Display 1999

GENERAL CHARACTERISTICS
Power 9V Battery (6F22)
LCD Size 33x65mm
Product Colour UT55 - Grey, Holster - Red
Product Net Weight 580g (including holster)
Product Size 190 x 88 x 34mm
Standard Accessories Test Lead, Battery, Point Contact Temperature Probe, Holster, English Manual(PDF online),


User Manual Online
