|This is a USA brand new GQ 5200 SMD Rework Station 2-in-1 System. |
The only station has independent Celsius and Fahrenheit display.
1. Wide range of temperature and airflow adjustment.
2. Cool air will start to blow continuously after using thus prolonging the usage life of the heating system.
3. Two real time digital temperature mornitors for actual temperature on hot air and iron.

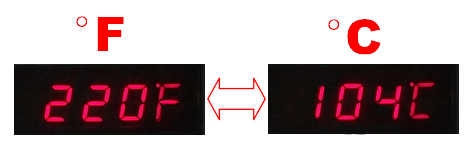

4. Independent Celsius and Fahrenheit display control. User can select any channel any unit tmperature display.
5. Microcontroller controlled proactive system displays indutrial standard error and warning code.
6. Best suited for repairing QFP, SOP, PLCC and SOJ components.
Power Input : 220V/240V AC
Power Consumption: 270W
Temperature Range: 200-480 degrees Celsius (390 - 900degree Fahrenheit)
Heating Element:Metal Heating Core

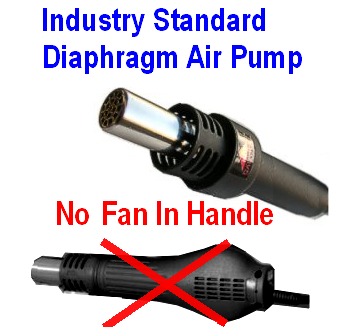

Pump/Motor Type: Diaphragm Pump
Air Capacity: 0.3~24 L /min (max)
Station Dimensions(WxHxD): 7.5' x 5.4' x 9.6', 187mm x 135mm x 245 mm
Weight: 11 lb (4.7kg)
Station with hot air gun, soldering iron, Z001 Hot air gun holder,soldering iron holder,Power cord.
FREE four size air nozzles:
A1125 2.5mm (0.09')A1130 4.4mm (0.17')A1196 7.0mm (0.27')A1197 9.0mm (0.35')
FREE one iron heat element for backup replacement
FREE one hot air heat element for backup replacement
FREE ten size/shape iron tips for different applications
FREE one Anti-Magnetic tweezers for small SMD component handling.
FREE one IC remove tool (popper) for big IC SMD component removing
We ship the item via Fedex Ground from Burnaby,BC, Canada. (We reserve option to ship with other carriers if needed)
WE WILL SHIP TO WORLDWIDE addresses. Please email us within EBAY to receive the shipping quotes!
One year warranty
MCUmall Electronics Inc is located in Burnaby,BC,Canada. The company is focused on true low cost equipment solution for device programming, electronics development, electronics lab, auto mobile field service and many other electronics related applications.
