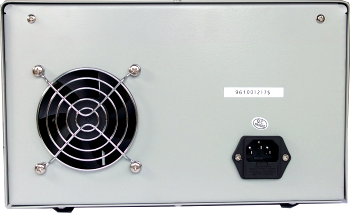

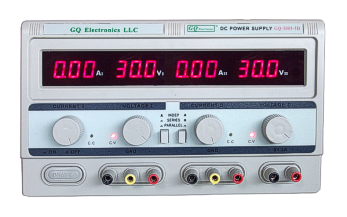

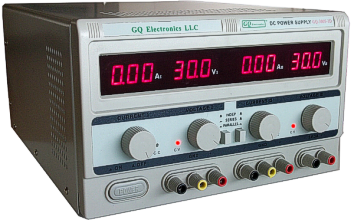

TOOL-071 GQ-3005D-3D Triple output DC Power Supply
|This is a GQ-3005D-3D brand new triple output lab grade two channel 0-30V 5A variable and fixed 5V 3A DC power supply. Very useful tool for lab or service.|
1. Real-time dispay DC current and voltage.
2. With continuously adjustable regulated voltage output 0-30V voltage.
3. High-precision voltage regulator, steady stream, the output voltage and current can be adjustable between 0 and the nominal value.
4. With load capability.
5. With a current-limiting protection.
6. Ripple low, low noise.
7. Light and Compact Design
8. Transfomal type liner stable power source design
9. Configurable three modes supported: two channel 0-30V 5A, one channel 0-60V 5A and one channel 0-30V 10A.
Regulators working condition
(1) Output voltages from 0 to continuously adjustable between the nominal value
(2) Voltage stability
Power stability <0.01% +2 mV
Load stability <0.01% +2 mV (maximum current <3A)
Load stability <0.01% 5mV (maximum current> 3A)
(3) Ripple noise <0.5mVrms (5Hz - 1MHz) (maximum current <3A)
<1.0mVrms (5Hz - 1MHz) (maximum current> 3A)
(4) The temperature coefficient of <300PPM / °C
Steady flow of work status
(1) The output current from 0 to nominal value continuously adjustable
(2) The current stability
Power stability <0.2% +3 mA
Load stability <0.2% +3 mA
(3) Ripple noise <3mArms
Power Input : 110V/120 AC
Power Consumption: 300W Max.
Dimensions(WxHxD): 10' x 7' x 13.75'(13' front to back and 0.75' for knobs)

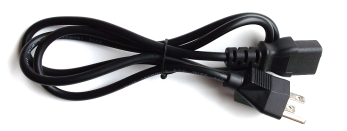

3005D-3D DC Power supply unit,Power cord, user guide.

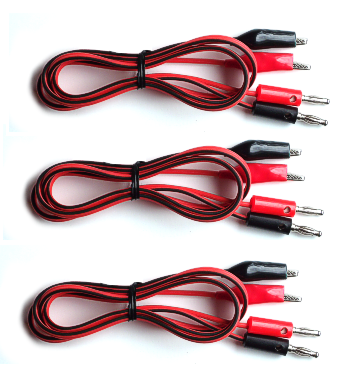

FREE three DC output cord with prob clips
One year warranty
