dgdiniz

10 Posts

Posted - 10/19/2015 :  14:41:19  Show Profile  Reply with Quote
Hi, I have a Gq-4x and I have the adapter (ADP-077 and ADP-082) to program the 29f016/32 Tsop40 chips.

This adapter supports Tsop48 chips, so can I program a 29f016 tsop48 using the Gq-4x?

Seems that the only difference between the Tsop48 and Tsop40 are four pairs of NC pins in each corner of the chip.

So, it's possible?

Thanks
Reply #1

zzattack

Netherlands
9 Posts

Posted - 10/19/2015 :  23:03:04  Show Profile  Reply with Quote
Yes, align them like this:
hxxp://files.zzattack.org/img/upload/20102015-00184.jpg
Go to Top of Page
Reply #2

nikos

Greece
6 Posts

Posted - 06/29/2018 :  00:59:19  Show Profile  Reply with Quote
quote:
Originally posted by zzattack

Yes, align them like this:
hxxp://files.zzattack.org/img/upload/20102015-00184.jpg



i want to read 29F016 TSOP 48 i have adapter
ADP-077 only do i need also ADP-082 adapter?

Regards.

Edited by - nikos on 06/29/2018 09:02:53
Go to Top of Page
Reply #3

anniel

2532 Posts

Posted - 06/29/2018 :  06:30:14  Show Profile  Reply with Quote
quote:
Originally posted by nikos

quote:
Originally posted by zzattack

Yes, align them like this:
hxxp://files.zzattack.org/img/upload/20102015-00184.jpg



i want to read 29F016 TSOP 48 i have adapter
AD-077 only do i need also ADP-082 adapter?

Regards.



Yes you need a base board.
Go to Top of Page
Reply #4

nikos

Greece
6 Posts

Posted - 06/29/2018 :  08:53:34  Show Profile  Reply with Quote
i have ADP-077 and ADP-072 not ADP-082.
Go to Top of Page
Reply #5

ZLM

2937 Posts

Posted - 07/01/2018 :  07:44:13  Show Profile  Reply with Quote
If your chip is 40 pin TSOP, then you need ADP-082 base.
If your chip is 48 pin TSOP, then you need ADP-072 base.
Go to Top of Page
Reply #6

nikos

Greece
6 Posts

Posted - 07/03/2018 :  02:49:20  Show Profile  Reply with Quote
the software does not have any option for 29F016 TSOP48
Go to Top of Page
Reply #7

ZLM

2937 Posts

Posted - 07/03/2018 :  14:45:41  Show Profile  Reply with Quote
This TSOP48 chip is not tested on GQ-4x.

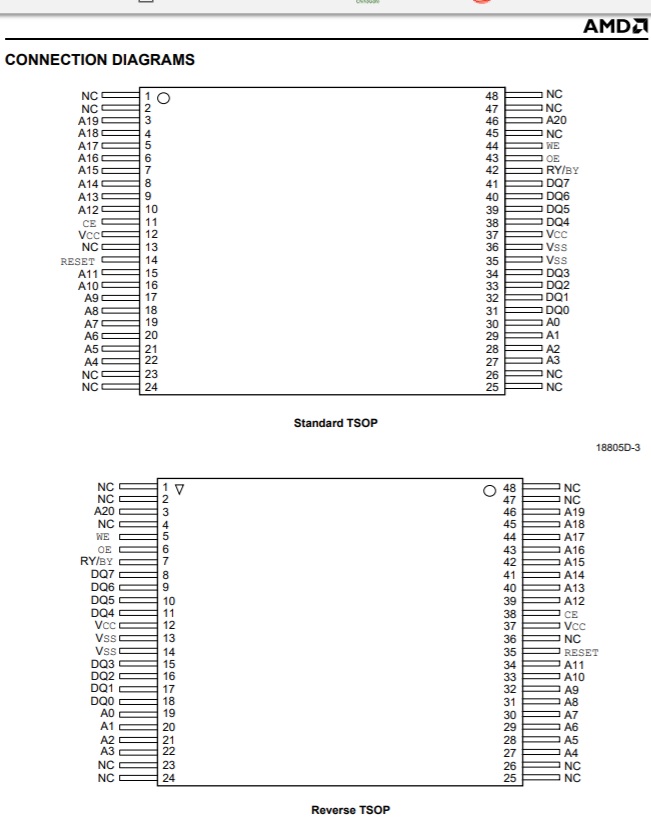

Checked datasheet and found this TSOP48 chip pinout is not the standard. So, there is no adapter for it.

see:


AM29F016B TSOP48 pinout:

97886 bytes
Go to Top of Page
