 ADP-019 issue?
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

mirando

4 Posts

Posted - 04/23/2016 :  10:40:01  Show Profile  Reply with Quote
Good day, community.

I have true usb willem programmer GQ-4x and ADP-019 adaptor.
I bought it 2 days ago and i think it's v1. Does it?
Well i decided to read 29F800BB chip. Programmer successfully read ID and binary. When i looked through the dump i found out that it has two identical halves splited at 0x80000, i.e. 0x0-0x80000 and 0x80000-0xFFFFF are identical. People said me it's impossible and dump is wrong. There should be another code at first half.

So the question is: may old version adapter cause this issue? Again, reading ID and reading dump procedures passed successfully. What are the differences between v1 and v2 adapters?

Edited by - mirando on 04/23/2016 10:41:03
Reply #1

mirando

4 Posts

Posted - 04/24/2016 :  11:47:31  Show Profile  Reply with Quote
Answering my own question YES, IT DOES. Because using ADP-019v1 with GQ-4x u must have also ADP-053. Maybe that will help others too.

Second question is: Can anyone share the correct pinout of it (ADP-053)? Looks pretty simple and too cheap but I can't wait a lot (month or two for delivery).
I have already seen it somewhere at this forum already, but can not find it again..

Any hints and tips are extremely appreciated.
Best regards!

Edited by - mirando on 04/24/2016 11:48:20
Go to Top of Page
Reply #2

anniel

1996 Posts

Posted - 04/24/2016 :  15:00:10  Show Profile  Reply with Quote
Go to Top of Page
Reply #3

mirando

4 Posts

Posted - 04/24/2016 :  20:29:08  Show Profile  Reply with Quote
quote:
Originally posted by anniel
ZIF 40 PINOUT



Thank you a lot, anniel! This helps a lot!

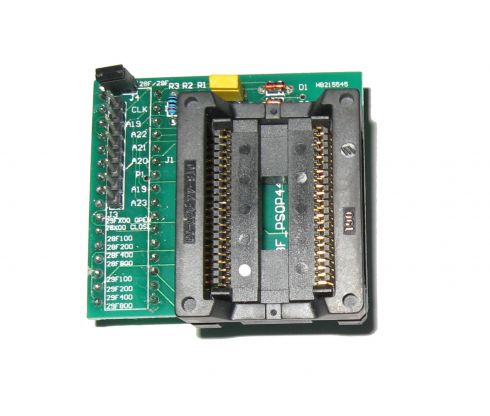

As Ican see there are a CLK, P1 and doubled A19 pins on the ADP-019v1 board. Should they be connected somwhere?
Go to Top of Page
Reply #4

anniel

1996 Posts

Posted - 04/25/2016 :  09:59:39  Show Profile  Reply with Quote
No only the address lines are connected and the two A19 together.
Go to Top of Page
Reply #5

mirando

4 Posts

Posted - 04/25/2016 :  12:52:51  Show Profile  Reply with Quote
quote:
Originally posted by anniel

No only the address lines are connected and the two A19 together.



Thank you again! That works!
Go to Top of Page
Reply #6

anniel

1996 Posts

Posted - 04/25/2016 :  14:21:40  Show Profile  Reply with Quote
My pleasure!
