toor

Italy
5 Posts

Posted - 04/22/2016 :  06:31:49  Show Profile  Reply with Quote
Hello

i need to read and reprogram jtag plcc68 Altera epm7064 but not find the adapter ??

can helpme ???

Thank You
Reply #1

toor

Italy
5 Posts

Posted - 04/22/2016 :  09:43:08  Show Profile  Reply with Quote

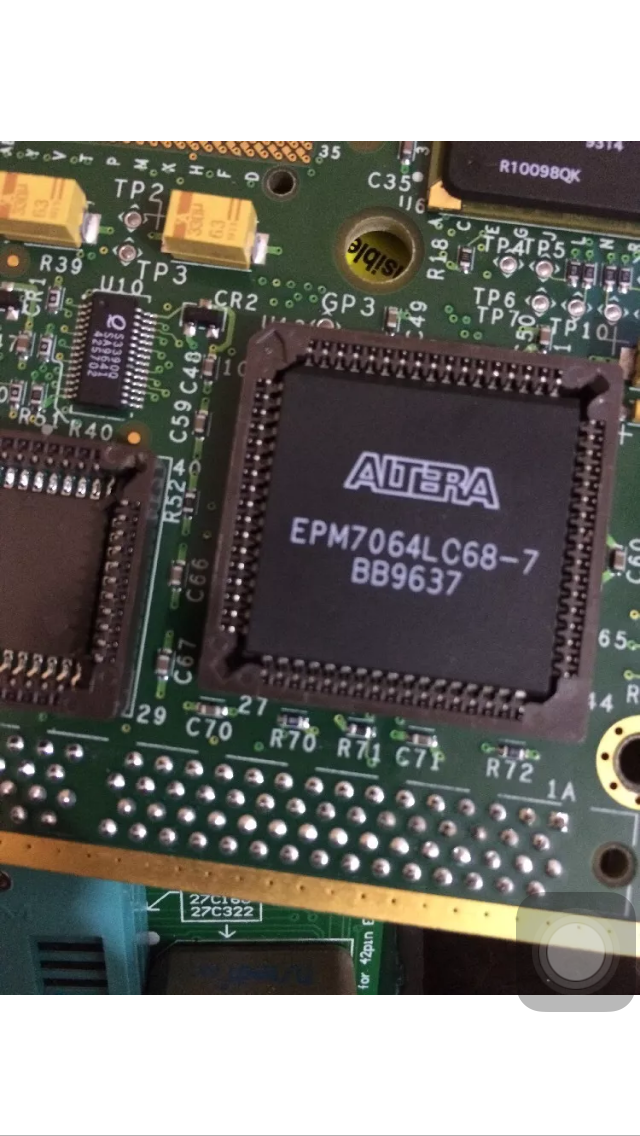

Image Insert:

1152286 bytes
Go to Top of Page
Reply #2

anniel

1996 Posts

Posted - 04/22/2016 :  10:12:40  Show Profile  Reply with Quote
http://www.mcumall.com/comersus/store/comersus_viewItem.asp?idProduct=4391
Go to Top of Page
Reply #3

toor

Italy
5 Posts

Posted - 04/22/2016 :  10:26:05  Show Profile  Reply with Quote
quote:
Originally posted by anniel

http://www.mcumall.com/comersus/store/comersus_viewItem.asp?idProduct=4391



I need the adapter for GQ-4X 4, read old ic and write in new ic not the socket.

Similar part ADP-097 but this is for jtag plcc44, i need for plcc68.

ADP-???

Thank you
Go to Top of Page
Reply #4

anniel

1996 Posts

Posted - 04/22/2016 :  13:14:29  Show Profile  Reply with Quote
No adapter is needed for JTAG.


For stability you can also add this.
http://www.mcumall.com/comersus/store/comersus_viewItem.asp?idProduct=4310

Edited by - anniel on 04/22/2016 13:16:03
Go to Top of Page
Reply #5

toor

Italy
5 Posts

Posted - 04/22/2016 :  15:26:48  Show Profile  Reply with Quote
quote:
Originally posted by anniel

No adapter is needed for JTAG.


For stability you can also add this.
http://www.mcumall.com/comersus/store/comersus_viewItem.asp?idProduct=4310




Hello thanks for replay.

The board is one CPU Mips R12000 PMT5 and not have the attach pin for connect the jtag/spi cable.

I need to leave the Altera EMP7064lc68 mount in one adapter for read and mod the program inside the IC and reput in board. I need to find one adapter for plcc68 and mcumall not have available for 68 pin but only 44 and 84.

Thank you
Go to Top of Page
Reply #6

anniel

1996 Posts

Posted - 04/23/2016 :  02:56:56  Show Profile  Reply with Quote
You have the datasheet of your chip or your board to find the JTAG pinout?
On your picture there is test points everywhere (TP) your JTAG must be there.
Find your JTAG points and connect with testclips, pogo pins or use a socket and jumper wires.

Edited by - anniel on 04/23/2016 03:02:52
Go to Top of Page
Reply #7

toor

Italy
5 Posts

Posted - 04/23/2016 :  05:57:37  Show Profile  Reply with Quote
quote:
Originally posted by anniel

You have the datasheet of your chip or your board to find the JTAG pinout?
On your picture there is test points everywhere (TP) your JTAG must be there.
Find your JTAG points and connect with testclips, pogo pins or use a socket and jumper wires.



Hello

The dataship i find only the Altera ic but the diagram layer board is impossible becouse is a CPU module by Silicon Graphics very restrictive material, is old 1996 but newer release notting to the public.

I check if the in-out jtag pin in the IC are conect to TP.

Thank you
Go to Top of Page
