 Correct connection of 16bit Adapter board		  New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

underwoodle

USA
1 Posts
Posted - 02/10/2008 :  19:42:32  Show Profile  Reply with Quote

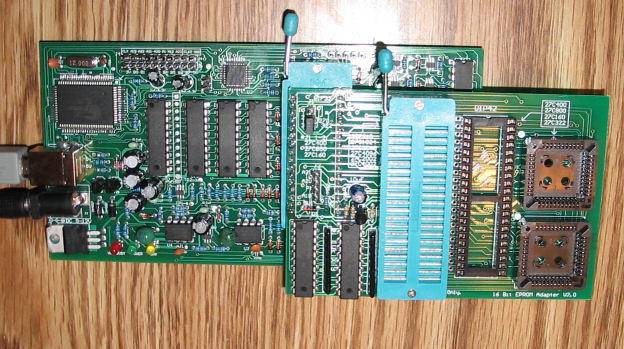

Sorry if this is a newbie question. I am trying to connect the 16bit adapter board to the GQ-3x I recently purchased from MCUMall. Is this the correct orientation?



Image Insert:

102.62 KB
Reply #1

ZLM

2937 Posts
Posted - 02/11/2008 :  09:36:02  Show Profile  Reply with Quote
Yes. It is correct for 40 pin EPROMs.

For the 42 pin EPROMs, you need connect three address wire too.

The external power is optional.
