 Using The Enhanced/Dual power Willem Programmer
 Dual power Willem PCB5 issues.
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

Daniel Grafflin

USA
17 Posts

Posted - 03/21/2021 :  00:48:19  Show Profile  Reply with Quote

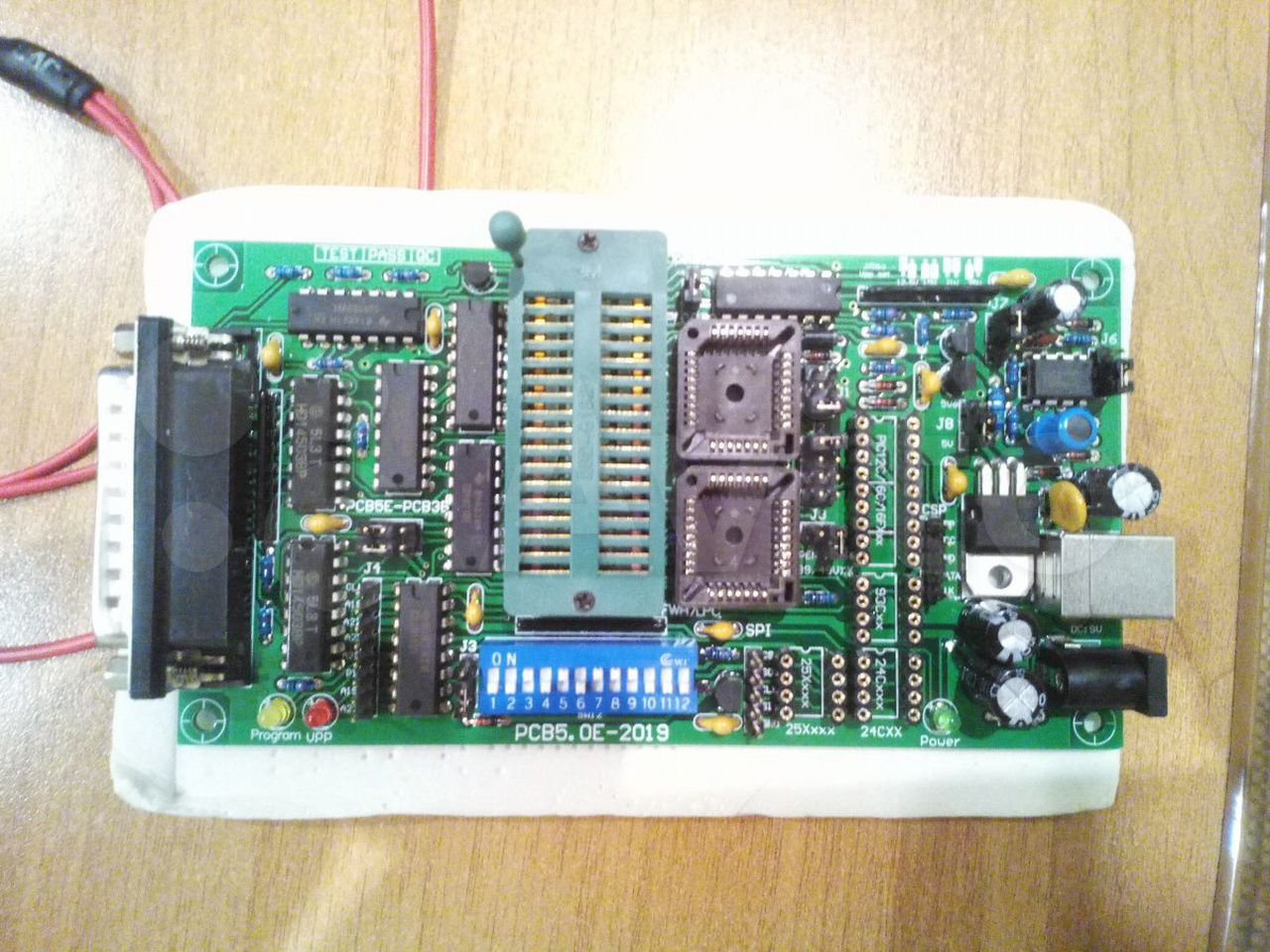

I think I have a real oddball PCB5. Labeled PCB5.0E-2019
I have yet to find an image that exactly matches my board.
I am looking to rebuild the VPP boost converter circuit making it stiff for voltage and current.
With a 12 V 1.5 amp supply, I get an error in hardware,,what is with that ? Note, no jumper to select USB or DC in.
Because the price of D8749H is 10X what I used to pay, I cannot afford to fry any processors, the reason for the mod.
It works fine otherwise, just got a good read from a 28F020 but had to figure out the PLCC32 socket.
Even though I am going to buy the GQ-5X, this is a keeper for me.
Anyone else run into such oddballs ?
Reply #1

anniel

2559 Posts

Posted - 03/21/2021 :  05:57:55  Show Profile  Reply with Quote
quote:
Originally posted by Daniel Grafflin

I think I have a real oddball PCB5. Labeled PCB5.0E-2019
I have yet to find an image that exactly matches my board.
I am looking to rebuild the VPP boost converter circuit making it stiff for voltage and current.
With a 12 V 1.5 amp supply, I get an error in hardware,,what is with that ? Note, no jumper to select USB or DC in.
Because the price of D8749H is 10X what I used to pay, I cannot afford to fry any processors, the reason for the mod.
It works fine otherwise, just got a good read from a 28F020 but had to figure out the PLCC32 socket.
Even though I am going to buy the GQ-5X, this is a keeper for me.
Anyone else run into such oddballs ?


Go to Top of Page
Reply #2

Daniel Grafflin

USA
17 Posts

Posted - 03/22/2021 :  01:36:13  Show Profile  Reply with Quote
Yep, that is the board I have, thanks.
Go to Top of Page
Reply #3

anniel

2559 Posts

Posted - 03/22/2021 :  14:03:46  Show Profile  Reply with Quote
quote:
Originally posted by Daniel Grafflin

Yep, that is the board I have, thanks.

https://www.mcumall.com/forum/topic.asp?TOPIC_ID=13119&SearchTerms=pcb
Go to Top of Page
