 GQ-4X and M27C160 EEPROM
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

synker

5 Posts

Posted - 04/26/2016 :  04:08:54  Show Profile  Reply with Quote
Hi,

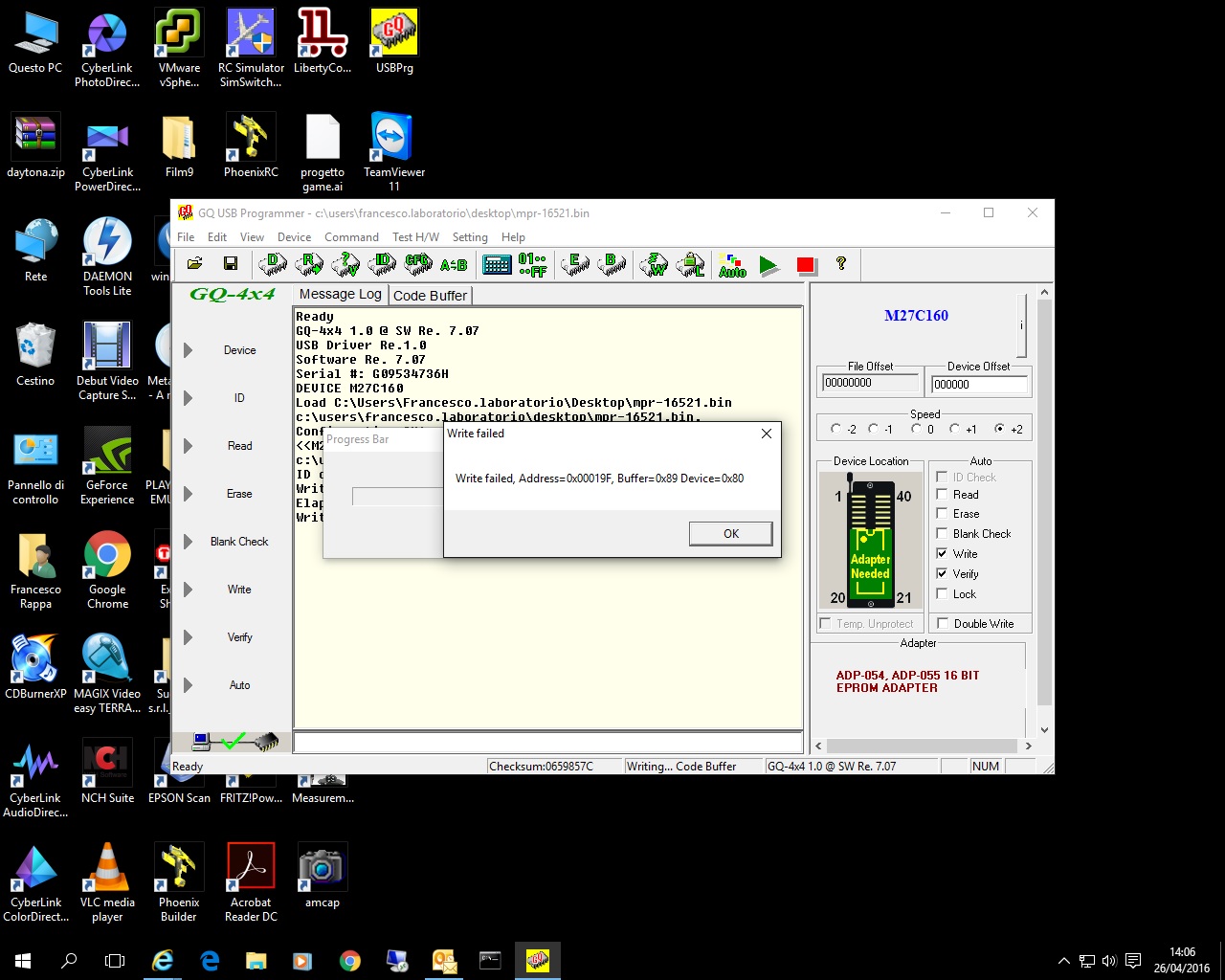

I bought GQ-4X for write some M27C160 EEPROM. I bought ADP-054 too for the old eeprom. Unfortunatly when I try to write our 2Mb file to the EEPROM the programmer goes to error immediatly. Is there any setting I need to success write the eeprom?
Thanks in advance

Image Insert:

281794 bytes
Reply #1

anniel

1996 Posts

Posted - 04/26/2016 :  04:24:10  Show Profile  Reply with Quote
Did you erase the EPROM? Blank check? Set the jumpers on the ADP-054?
Go to Top of Page
Reply #2

synker

5 Posts

Posted - 04/26/2016 :  04:31:10  Show Profile  Reply with Quote
quote:
Originally posted by anniel

Did you erase the EPROM? Blank check? Set the jumpers on the ADP-054?



Eprom was erased by U/V and checked with Blank check. on ADP-054 J1 is 1-2 jumped and J5 is V4 jumped. Do I need any other jumper?
Go to Top of Page
Reply #3

anniel

1996 Posts

Posted - 04/26/2016 :  05:49:39  Show Profile  Reply with Quote
J1 is ok. J5 is chip compatibility jumper change it if the chip has inconsistent reading, writing.
Go to Top of Page
Reply #4

anniel

1996 Posts

Posted - 04/26/2016 :  06:00:25  Show Profile  Reply with Quote
http://www.mcumall.com/forum/topic.asp?TOPIC_ID=6290
Go to Top of Page
Reply #5

synker

5 Posts

Posted - 04/26/2016 :  09:26:51  Show Profile  Reply with Quote
Thanks anniel but:

I tried to change USB cable, change pc, change Eprom, add PSU, change USB port without success!
Also if I try to change the J5 jumper (from V4 to V3) the programmer is not detected! Any other suggest?
Go to Top of Page
Reply #6

anniel

1996 Posts

Posted - 04/26/2016 :  10:33:50  Show Profile  Reply with Quote
Try 27C160.
Go to Top of Page
Reply #7

synker

5 Posts

Posted - 04/27/2016 :  01:19:04  Show Profile  Reply with Quote
Same thing
Go to Top of Page
Reply #8

anniel

1996 Posts

Posted - 04/27/2016 :  02:43:11  Show Profile  Reply with Quote
Maybe ZLM can kick in an give you pointers...
Go to Top of Page
Reply #9

ZLM

2923 Posts

Posted - 04/27/2016 :  07:16:23  Show Profile  Reply with Quote
Thank you Anniel.

The problem may come from chip itself or the adapter.

Please check followings:
1.chip pin contacting on all pins.
2. change to another chip and try. This will make sure your chip has no problem.
3. test the programmer with Voltage Diagnostic of software menu.

This chip does not need external power supply. The USB power is good enough.

If all above can not find the problem, then you can send your programmer set to MCUmall for test/exchange.



Go to Top of Page
Reply #10

synker

5 Posts

Posted - 04/27/2016 :  07:40:15  Show Profile  Reply with Quote
quote:
Originally posted by ZLM

Thank you Anniel.

The problem may come from chip itself or the adapter.

Please check followings:
1.chip pin contacting on all pins.
2. change to another chip and try. This will make sure your chip has no problem.
3. test the programmer with Voltage Diagnostic of software menu.



Thanks ZLM,

1. All chip pins contacting well
2. I tried 8 chips with the same result (same error)
3. here the programmer test log


*****************************
* Testing VCC Without Load *
*****************************
VCC 3.6V test passed (code:0x6160)+
VCC 5V test passed (code:0x8889)+
VCC 5.5V test passed (code:0x9090)+
VCC 6.2V test passed (code:0xa2a2)+
VCC 6.5V test passed (code:0xa2a6)+
*****************************
* Testing VPP Without Load *
*****************************
VPP 3.6V/5V test passed (code:0x1a1a)+
VPP 12V test passed (code:0x5051)+
VPP 12.7V test passed (code:0x4f50)+
VPP 15V test passed (code:0x6364)+
VPP 21V test passed (code:0x8686)+
VPP 25V test passed (code:0x9b9b)+
*****************************
* Test Completed *
*****************************



Go to Top of Page
